PopUp

This page has been automatically translated using the Google Translate API services. We are working on improving texts. Thank you for your understanding and patience.

Functions

PopUp*	popup_create (void)
void	popup_OnSelect (...)
void	popup_tooltip (...)
void	popup_add_elem (...)
void	popup_set_elem (...)
void	popup_clear (...)
uint32_t	popup_count (...)
void	popup_list_height (...)
void	popup_selected (...)
uint32_t	popup_get_selected (...)
const char_t*	popup_get_text (...)

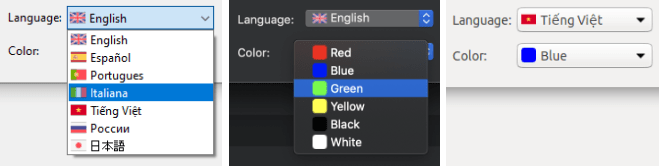

PopUps are buttons that have a drop-down menu associated with them (Figure 1). Apparently they look like pushbuttons that when pressed show a list of options. In Hello PopUp and Combo! you have an example of use.

Use popup_create to create a popup.
Use popup_add_elem to add an item to the list.
Use popup_OnSelect to respond to the selection.

popup_create ()

Create a new popup control (PopUp button).

PopUp*
popup_create(void);

Return

The newly popup.

popup_OnSelect ()

Set an event handler for the selection of a new item.

void
popup_OnSelect(PopUp *popup,
               Listener *listener);

static void i_OnSelect(App *app, Event *e)
{
    const EvButton *p = event_params(e, EvButton);
    do_something_onselect(app, p->index);
}
...
popup_OnSelect(popup, listener(app, i_OnSelect, App));

popup	The popup.
listener	Callback function to be called after selecting a new item from the list.

Remarks

See GUI Events.

popup_tooltip ()

Assign a tooltip to the popup control.

void
popup_tooltip(PopUp *popup,
              const char_t *text);

popup	The popup.
text	UTF8 C-string terminated in null character `'\0'`.

popup_add_elem ()

Add a new item to the popup list.

void
popup_add_elem(PopUp *popup,
               const char_t *text,
               const Image *image);

popup	The popup.
text	The text of the element in UTF-8 or the resource identifier. Resources.
image	Icon associated with the resource element or identifier. For space, it will scale to a maximum maximum of 16 pixels.

popup_set_elem ()

Edit an item from the drop-down list.

void
popup_set_elem(PopUp *popup,
               const uint32_t index,
               const char_t *text,
               const Image *image);

popup	The popup.
index	The index of the item to replace.
text	The text of the element in UTF-8 or the resource identifier. Resources.
image	Icon associated with the resource element or identifier. For space, it will scale to a maximum maximum of 16 pixels.

popup_clear ()

Remove all items from the dropdown list.

void
popup_clear(PopUp *popup);

popup

The popup.

popup_count ()

Gets the number of items in the list.

uint32_t
popup_count(const PopUp *popup);

popup

The popup.

Return

The number of elements.

popup_list_height ()

Set the size of the drop-down list.

void
popup_list_height(PopUp *popup,
                  const uint32_t elems);

popup	The popup.
elems	Number of visible elements. If the control has more, a scroll bar will appear.

popup_selected ()

Set the selected popup element.

void
popup_selected(PopUp *popup,
               const uint32_t index);

popup	The popup.
index	The item to select. If we pass `UINT32_MAX` the selection is removed.

popup_get_selected ()

Get the selected popup item.

uint32_t
popup_get_selected(const PopUp *popup);

popup

The popup.

Return

The selected item.

popup_get_text ()

Gets the text of a popup element.

const char_t*
popup_get_text(const PopUp *popup,
               const uint32_t index);

popup	The popup.
index	The index of the element.

Return

The text of the element.
