Sets - Binary search trees

❮ Back
Next ❯
This page has been automatically translated using the Google Translate API services. We are working on improving texts. Thank you for your understanding and patience.

Data container where the elements are stored in the form of a binary tree, optimizing searches, insertions or deletions. For sets of pointers consult Sets of pointers.


Functions

SetSt(type)*setst_create (...)
voidsetst_destroy (...)
uint32_tsetst_size (...)
type*setst_get (...)
type*setst_insert (...)
bool_tsetst_delete (...)
type*setst_first (...)
type*setst_last (...)
type*setst_next (...)
type*setst_prev (...)
voidsetst_foreach (...)
voidsetst_fornext (...)
voidsetst_foreach_rev (...)
voidsetst_forprev (...)

Like arrays binary search trees (BST), also known as sets or maps, are containers that allow us to work with a collection of objects. The main difference with the first ones is that the elements are not stored linearly in contiguous positions of memory, but use a tree-shaped structure where each node has two descendants (Listing 1) (Figure 1).

Listing 1: Creation of arrays and sets.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
typedef struct _product_t Product;
struct _product_t
{
    type_t type;
    String *code;
    String *description;
    Image *image64;
    real32_t price;
};

static int i_compare(const Product *p1, const Product *p2)
{
    return str_scmp(p1->code, p2->code);
}

ArrSt(Product) *arrst = arrst_create(Product);
ArrPt(Product) *arrpt = arrpt_create(Product);
SetSt(Product) *setst = setst_create(i_compare, Product);
SetPt(Product) *setpt = setpt_create(i_compare, Product);

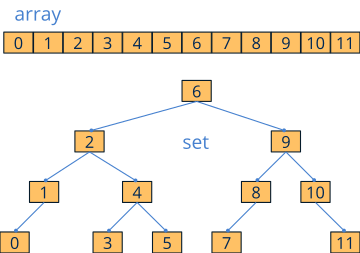

Representation of a set of elements in array and in a search tree.
Figure 1: Array and set representation.

BSTs are structures optimized for cases where insertions, deletions and searches are very frequent. They are permanently sorted, hence it is possible to insert, delete or locate any element in logarithmic time O(logn), no need to use sort functions like arrst_sort (Figure 2). For maintenance to be carried out efficiently, the tree that supports the structure must meet a number of characteristics:

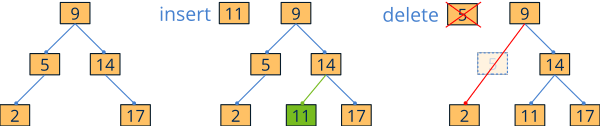

Scheme showing insertion or deletion of an element in a binary search tree.
Figure 2: In search trees the insertion or deletion does not break the order of the set.
  • Binary : Each node can only have 0, 1 or 2 children.
  • Sorted : All descendants to the left of a node are of lesser value and those to the right of greater value. The order and search criteria are set in the constructor by a comparison function (i_compare in the previous example) and cannot be changed during the lifetime of the container. The new elements will be inserted in their correct position according to this order. It does not support duplicate elements or in arbitrary positions.
  • Balanced: A tree can fulfill the two previous properties, but have degenerated to a list where searches can no longer be resolved in logarithmic time (Figure 3). Internally, the NAppGUI Set containers are implemented with the so called red-black trees, where a maximum height of 2log(n+1) is guaranteed. This is achieved by restructuring the tree after each insertion or deletion, so adding a new element (or removing it) is resolved in a maximum of O(logn). This is much faster than in arrays, where have to move all the elements to insert a record in a specific position, with an associated cost of O(n).
  • Comparison of a degenerated (to a list) and balanced search tree.
    Figure 3: Degenerated and balanced search tree.

As we saw in Registers or pointers, we have two modalities when creating sets (Figure 4). The register-based version is more efficient than the pointer-based version, although less flexible.

  • Use setst_create to create a set of registers.
  • Use setpt_create to create a set of pointers.
  • Comparison of recordsets and pointersets.
    Figure 4: Sets of registers and pointers.

1. Iterators

We cannot access the elements of a set using a random index, as was the case with arrays. The nodes are dispersed in different memory areas, which prevents calculating the position of a particular element from a base address. An iterator is nothing more than a pointer within the set that acts as a marker for the currently selected element (Figure 5). From a specific position, we can move to the previous or subsequent element, but never make arbitrary jumps. We can control the position of the iterator with different functions:

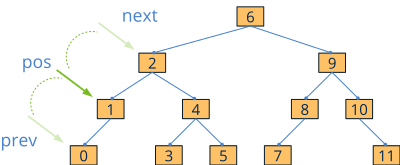

Shows the behavior of an iterator pointer within a search tree.
Figure 5: The iterators allow us to move through the structure.
  • Use setst_get to search for an item. The iterator will be fixed on it.
  • Use setst_next to move the iterator to the next item.
  • Use setst_prev to move the iterator to the previous item.
  • Use setst_first to move the iterator to the first element of the set.
  • Use setst_last to move the iterator to the last element of the set.

2. Arrays vs Sets comparative

We have performed a test to see the behavior of these two types of structures in real situations, apart from mere theory (Table 1). The structure used has been Product described in (Listing 1). We will compare six types of containers ArrSt(Product) and ArrPt(Product) (unsorted), ArrSt(Product) and ArrPt(Product) (sorted), SetSt(Product) and SetPt(Product).

  • The items will be sorted by code field using the method i_compare described in (Listing 1).
  • The elements have been created previously and reside in memory. Times only reflect the management performed by the containers.
  • Field code take values from "0" until "n-1", where n=100,000 is the number of elements. The elements have been previously messed up using the function bmem_shuffle_n.
  • The tests have been performed on a Raspberry Pi 3 Model B with NAppGUI compiled in Release version (Configurations). We have chosen this platform because of its clear technical inferiority with respect to others. In this way the asymptotic difference is more evident.
  • Table 1: Results of the comparison (in seconds).
    Operation ArrSt ArrPt ArrSt-Sort ArrPt-Sort SetSt SetPt
    Add(100k) 0.006 0.004 27.600 2.896 0.159 0.274
    Loop(100k) 0.000 0.000 0.000 0.000 0.022 0.025
    Search(100k) 84.139 588.080 0.101 0.218 0.121 0.232
    Sort(100k) 0.085 0.205 - - - -
    Delete(100k) 0.004 0.003 31.198 3.064 0.171 0.253

In view of these data, we can reach the following conclusions:

  • Linear searches O(n) are tremendously slow.
  • Keeping an array sorted after each insertion or deletion is expensive. It is more efficient to add all the elements and then order, although this will not always be possible. If the elements enter or leave arbitrarily but the set must always be ordered, it is better to use Sets.
  • Register-based containers are more efficient in queries, but less when inserting or deleting. However, this test does not include the time to create or release dynamic memory, something inherent in pointer containers.
  • Iterating in arrays is almost free, but iterating in sets has a small cost due to the logic of jumping between nodes.
  • We cannot say that one container is better than another in general. It will depend on each specific case.
  • For small groups (less than 1000 elements) the differences are practically imperceptible.
  • For extremely small groups (up to 100 items) always use arrays. The asymptotic Sets improvement is marred by the much more efficient implementation of the Arrays.

setst_create ()

Create an empty set of registers.

SetSt(type)*
setst_create(FPtr_compare func_compare,
             type);
func_compare

Function to compare two elements. Sort and search.

type

Object type.

Return

The new set.


setst_destroy ()

Destroy a set and all its elements.

void
setst_destroy(SetSt(type) **set,
              FPtr_remove func_remove,
              type);
set

The set. Will be set to NULL after destruction.

func_remove

Function that must free the memory associated with the object's fields, but not the object itself Destructors. If it is NULL only the set will be released and not the internal content of the elements.

type

Object type.


setst_size ()

Get the number of set elements.

uint32_t
setst_size(const SetSt(type) *set,
           type);
set

The set.

type

Object type.

Return

Number of items.


setst_get ()

Search for an item in O(logn). It is equivalent to arrst_bsearch. If exists, the internal structure iterator will be fixed in it.

type*
setst_get(SetSt(type) *set,
          type *key,
          type);
1
2
3
4
Product key;
Product *pr;
key.id = 453;
pr = setst_get(setst, &key, Product);
set

The set.

key

Search key. It is a pointer to an object where only the relevant search fields must be initialized.

type

Object type.

Return

Pointer to the item if it exists, or NULL if not.

Remarks

Iterators.


setst_insert ()

Insert a new item in the set.

type*
setst_insert(SetSt(type) *set,
             type *key,
             type);
1
2
3
4
5
6
7
8
Product *pr;
Product key;
key.id = 345;
pr = setst_insert(setst, &key, Product);
if (pr != NULL)
    i_init(pr, 345, 100.45f);
else
    error("Already exists");
set

The set.

key

Key to insert. It is a pointer to an object where only the relevant search fields must be initialized.

type

Object type.

Return

Pointer to the inserted element, which should be used to initialize the object. If an item with the same key already exists, it returns NULL.

Remarks

Inserting or deleting elements invalidates the internal set iterator Iterators. You must re-initialize it with setst_first.


setst_delete ()

Remove an item from the set.

bool_t
setst_delete(SetSt(type) *set,
             type *key,
             FPtr_remove func_remove,
             type);
1
2
3
4
Product key;
key.id = 345;
if (setst_delete(setst, &key, product_remove, Product) == FALSE)
    error("Doesn't exists");
set

The set.

key

Key to delete. It is a pointer to an object where only the relevant search fields must be initialized.

func_remove

Remove function. See setst_destroy.

type

Object type.

Return

TRUE if the item has been deleted, or FALSE if there is no item with that key.

Remarks

Inserting or deleting elements invalidates the internal set iterator Iterators. You must re-initialize it with setst_first.


setst_first ()

Get the first set element and initialize the internal iterator.

type*
setst_first(SetSt(type) *set,
            type);
set

The set.

type

Object type.

Return

Pointer to the first element or NULL if the set is empty.

Remarks

Iterators.


setst_last ()

Get the last element of the set and initialize the internal iterator.

type*
setst_last(SetSt(type) *set,
           type);
set

The set.

type

Object type.

Return

Pointer to the last item or NULL if the set is empty.

Remarks

Iterators.


setst_next ()

Get the next set item, after increasing the internal iterator.

type*
setst_next(SetSt(type) *set,
           type);
set

The set.

type

Object type.

Return

Pointer to the next item or NULL if the iterator has reached the last.

Remarks

Use setst_first to initialize the internal iterator Iterators.


setst_prev ()

Gets the previous element of the set, after decrementing the internal iterator.

type*
setst_prev(SetSt(type) *set,
           type);
set

The set.

type

Object type.

Return

Pointer to the previous item or NULL if the iterator has reached the first.

Remarks

Use setst_last to initialize the internal iterator on reversed loops Iterators.


setst_foreach ()

Go through all the elements of the set. Use setst_fornext to close the loop.

void
setst_foreach(type *elem,
              SetSt(type) *set,
              type);
1
2
3
setst_foreach(product, set, Product)
    bstd_printf("Position:%d, Id:%d\n", product_i, product->id);
setst_fornext(product, set, Product)
elem

Name of the variable 'element' within the loop. Adding the suffix '_i' we get the index.

set

The set.

type

Object type.


setst_fornext ()

Close the loop opened by setst_foreach, increasing the internal iterator.

void
setst_fornext(type *elem,
              SetSt(type) *set,
              type);
elem

Name of the variable 'element'. It must be the same as setst_foreach.

set

The set.

type

Object type.


setst_foreach_rev ()

Go through all the elements of the set in reverse order. Use setst_forprev to close the loop.

void
setst_foreach_rev(type *elem,
                  SetSt(type) *set,
                  type);
1
2
3
4
// Now in reverse order
setst_foreach_rev(product, set, Product)
    bstd_printf("Position:%d, Id:%d\n", product_i, product->id);
setst_forprev(product, set, Product)
elem

Name of the variable 'element' within the loop. Adding the suffix '_i' we get the index.

set

The set.

type

Object type.


setst_forprev ()

Close the loop opened by setst_foreach_rev, decreasing the internal iterator.

void
setst_forprev(type *elem,
              SetSt(type) *set,
              type);
elem

Name of the variable 'element'. It must be the same as setst_foreach_rev.

set

The set.

type

Object type.
