Colors

❮ Back
Next ❯
This page has been automatically translated using the Google Translate API services. We are working on improving texts. Thank you for your understanding and patience.

Functions

color_tcolor_rgb (...)
color_tcolor_rgba (...)
color_tcolor_rgbaf (...)
color_tcolor_hsbf (...)
color_tcolor_red (...)
color_tcolor_green (...)
color_tcolor_blue (...)
color_tcolor_gray (...)
color_tcolor_bgr (...)
color_tcolor_html (...)
voidcolor_to_hsbf (...)
voidcolor_to_html (...)
voidcolor_get_rgb (...)
voidcolor_get_rgbf (...)
voidcolor_get_rgba (...)
voidcolor_get_rgbaf (...)
uint8_tcolor_get_alpha (...)
color_tcolor_set_alpha (...)

Types and Constants

color_tkCOLOR_TRANSPARENT
color_tkCOLOR_DEFAULT
color_tkCOLOR_BLACK
color_tkCOLOR_WHITE
color_tkCOLOR_RED
color_tkCOLOR_GREEN
color_tkCOLOR_BLUE
color_tkCOLOR_YELLOW
color_tkCOLOR_CYAN
color_tkCOLOR_MAGENTA

The colors in Draw2D are encoded using a 32-bit integer with the four RGBA channels in Little-Endian: Red in byte 0, green in 1, blue in 2 and alpha (or transparency) in 3 (Figure 1). The alias color_t is used as an equivalent to uint32_t. In the particular case that byte 3 is equal to 0 (fully transparent), the first three bytes will not contain RGB information, but an index with a special color.

  • Use color_rgba to create a color using its RGBA components.
  • Use color_get_rgba to get the RGBA components.
  • Use color_html to translate an string into HTML format ("#RRGGBB").
  • Use kCOLOR_BLACK and others to access predefined basic colors.
  • 32-bit integer representing an RGBA value.
    Figure 1: 32-bit RGBA value representation.

1. HSV space

RGB representation is based on the addition of the three primary light colors. It is the most widespread within the generation of computer images, especially when calculating shading and reflections. It is also used in TV, monitors or projectors where each pixel is obtained by combining the light of three emitters. However, it is very unintuitive for human color editing. For example, given a color in RGB, it is very difficult to increase the brightness or vary the tone (between red and orange, for example) by manipulating the triplet (r, g, b). The HSV space (Hue, Saturation, Value) also called HSB (Brightness) solves this problem, since the effect of altering this group of values ​​will be highly predictable (Figure 2).

  • Use color_hsbf to create an RGB color from its components H, S, B.
  • Use color_to_hsbf to get the H, S, B components.

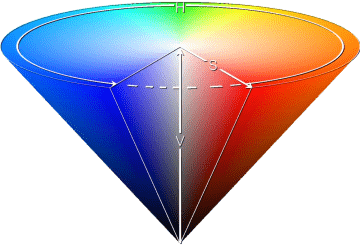

  • HSV cone representing the colors in this space.
    Figure 2: HSV space represented by an inverted cone. As V decreases, so will the number of colors available.
  • Hue: Continuous cyclical value between 0 and 1. Where 0=Red, 1/3=Green, 2/3 =Blue, 1=Red (Table 1).
  • Saturation: It is equivalent to adding white paint to the base tone. When S=1 no white is added (maximum saturation, pure color). But if S=0 we will have a pure white, regardless of the tone.
  • Brightness: It is equivalent to adding black paint to the HS combination. If B=1 no black is added (maximum brightness). If B=0 we will have a pure black, regardless of the hue and saturation.
  • Table 1: Equivalence RGB/HSV.
    RGB HSV
    (0,0,0) kCOLOR_BLACK (?,?,0)
    (1,1,1) kCOLOR_WHITE (?,0,1)
    (1,0,0) kCOLOR_RED (0,1,1)
    (1,1,0) kCOLOR_YELLOW (1/6,1,1)
    (0,1,0) kCOLOR_GREEN (1/3,1,1)
    (0,1,1) kCOLOR_CYAN (1/2,1,1)
    (0,0,1) kCOLOR_BLUE (2/3,1,1)
    (1,0,1) kCOLOR_MAGENTA (5/6,1,1)

Unlike RGB, HSVs are not totally independent. As we reduce the brightness, the number of colors of the same tone will decrease until we reach B=0 where we will have pure black regardless of H and S. On the other hand, if S=0 H will be overridden and we will have the different shades of gray as B changes from 0 (black) to 1 (white).

❮ Back
Next ❯

kCOLOR_TRANSPARENT

const color_t kCOLOR_TRANSPARENT;

Totally transparent color, absence of color or null color.


kCOLOR_DEFAULT

const color_t kCOLOR_DEFAULT;

Default color.


kCOLOR_BLACK

const color_t kCOLOR_BLACK;

BLACK color rgb(0,0,0).


kCOLOR_WHITE

const color_t kCOLOR_WHITE;

WHITE color rgb(255,255,255).


kCOLOR_RED

const color_t kCOLOR_RED;

RED color rgb(255,0,0).


kCOLOR_GREEN

const color_t kCOLOR_GREEN;

GREEN color rgb(0,255,0).


kCOLOR_BLUE

const color_t kCOLOR_BLUE;

BLUE color rgb(0,0,255).


kCOLOR_YELLOW

const color_t kCOLOR_YELLOW;

YELLOW color rgb(255,255,0).


kCOLOR_CYAN

const color_t kCOLOR_CYAN;

CYAN color rgb(0,255,255).


kCOLOR_MAGENTA

const color_t kCOLOR_MAGENTA;

MAGENTA color rgb(255,0,255).


color_rgb ()

Create a color from the channels R (red), G (green) y B (blue).

color_t
color_rgb(const uint8_t r,
          const uint8_t g,
          const uint8_t b);
r

Red channel.

g

Green channel.

b

Blue channel.

Return

Color.

Remarks

The alpha channel is set to 255 (totally opaque).


color_rgba ()

Create a color from the channels R (red), G (green), B (blue) and A (alpha).

color_t
color_rgba(const uint8_t r,
           const uint8_t g,
           const uint8_t b,
           const uint8_t a);
r

Red channel.

g

Green channel.

b

Blue channel.

a

Alpha channel (transparency).

Return

Color.

Remarks

a=0 not supported. Use kCOLOR_TRANSPARENT in those cases.


color_rgbaf ()

Create a color from the normalized RGBA channels from 0 to 1.

color_t
color_rgbaf(const real32_t r,
            const real32_t g,
            const real32_t b,
            const real32_t a);
r

Red channel.

g

Green channel.

b

Blue channel.

a

Alpha channel (transparency).

Return

Color.

Remarks

a=0 not supported. Use kCOLOR_TRANSPARENT in those cases.


color_hsbf ()

Creates a color (rgb) from its components Hue-Saturation-Brightness.

color_t
color_hsbf(const real32_t hue,
           const real32_t sat,
           const real32_t bright);
hue

Hue component.

sat

Saturation component.

bright

Brightness component.

Return

Color.


color_red ()

Create an RGB color using only the red channel.

color_t
color_red(const uint8_t r);
r

Red Channel.

Return

Color.

Remarks

Equivalent to color_rgb(r, 0, 0).


color_green ()

Create an RGB color using only the green channel.

color_t
color_green(const uint8_t g);
g

Green channel.

Return

Color.

Remarks

Equivalent to color_rgb(0, g, 0).


color_blue ()

Create an RGB color using only the blue channel.

color_t
color_blue(const uint8_t b);
b

Blue channel.

Return

Color.

Remarks

Equivalent to color_rgb(0, 0, b).


color_gray ()

Creates a gray RGB color from intensity value.

color_t
color_gray(const uint8_t l);
l

Intensity (luminance).

Return

Color.

Remarks

Equivalent to color_rgb(l, l, l).


color_bgr ()

Create a color from a 32-bit BGR value. Byte 0 corresponds to channel B , 1 to G and 2 to R. The highest order byte is ignored (set to 255).

color_t
color_bgr(const uint32_t bgr);
bgr

The bgr 32bits value.

Return

Color.

Remarks

This byte order is typical in Web colors.


color_html ()

Create a color from a string in HTML or CSS format.

color_t
color_html(const char_t *html);
1
2
color_t c1 = color_html("#FF0000"); // Red
color_t c2 = color_html("#000080"); // Navy
html

The text string with the HTML color.

Return

The color transformed to RGB.


color_to_hsbf ()

Convert a color (rgb) to HSB space (hue, saturation, brightness).

void
color_to_hsbf(const color_t color,
              real32_t *hue,
              real32_t *sat,
              real32_t *sat);
color

Color.

hue

Hue component.

sat

Saturation component.

sat

Brightness component.


color_to_html ()

Convert a color to the HTML or CSS format (#RRGGBB).

void
color_to_html(const color_t color,
              char_t *html,
              const uint32_t size);
color

The color to convert.

html

Buffer where to write the result.

size

Result buffer size.


color_get_rgb ()

Returns RGB color values.

void
color_get_rgb(const color_t color,
              uint8_t *r,
              uint8_t *g,
              uint8_t *b);
color

Color.

r

Red channel.

g

Green channel.

b

Blue channel.

Remarks

In system or indexed colors, it makes effective the RGB value.


color_get_rgbf ()

Returns RGB color values, normalized from 0 to 1.

void
color_get_rgbf(const color_t color,
               real32_t *r,
               real32_t *g,
               real32_t *b);
color

Color.

r

Red channel.

g

Green channel.

b

Blue channel.

Remarks

In system or indexed colors, it makes effective the RGB value.


color_get_rgba ()

Returns the RGBA values of the color.

void
color_get_rgba(const color_t color,
               uint8_t *r,
               uint8_t *g,
               uint8_t *b,
               uint8_t *a);
color

Color.

r

Red channel.

g

Green channel.

b

Blue channel.

a

Alpha channel (transparency).

Remarks

In system or indexed colors, it makes effective the RGBA value.


color_get_rgbaf ()

Returns the RGBA values of the color, normalized from 0 to 1.

void
color_get_rgbaf(const color_t color,
                real32_t *r,
                real32_t *g,
                real32_t *b,
                real32_t *a);
color

Color.

r

Red channel.

g

Green channel.

b

Blue channel.

a

Alpha channel (transparency).

Remarks

In system or indexed colors, it makes effective the RGBA value.


color_get_alpha ()

Get the alpha (transparency) color component.

uint8_t
color_get_alpha(const color_t color);
color

Color.

Return

The alpha component. If it is equal 0 it means that the color is indexed (does not contain RGB values).


color_set_alpha ()

Changes the alpha (transparency) value of a color.

color_t
color_set_alpha(const color_t color,
                const uint8_t alpha);
color

Color.

alpha

Alpha component.

Return

The new color, with the altered alpha component.
