Functions

Listener*listener (...)
voidlisten (void)
voidlistener_destroy (...)
voidlistener_update (...)
voidlistener_event (...)
voidlistener_pass_event (...)
uint32_tevent_type (...)
type*event_sender (...)
type*event_params (...)
type*event_result (...)

An event is an action that occurs during the program execution, usually asynchronously or unpredictably and on which a given object must be notified. In applications with a graphical interface, many events are constantly occurring when the user interacts with the different controls. However, they can also occur in console applications, for example, when finish the writing of a file to disk or when downloading a page from Internet. In a system of events two actors intervene: The sender, which has evidence when the action occurs and the receiver who is notified that such action has occurred. To connect both ends we must perform these simple steps (Listing 1) (Figure 1):

  • Create a listener indicating the receiving object and the callback function to which the sender should call.
  • Said listener is assigned to the sender by the appropriate method. For example, the Button type provide the method button_OnClick to notify of a click.
  • When the event occurs, the sender calls the callback function, indicating the receiving object (parameter of listener) and detailed information about the event collected in the object Event.
  • Listing 1: Callback function and button click event.
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13

    static void OnClick(AppCtrl *ctrl, Event *event)
    {
        // TODO: Response to click
    }

    ...

    void CreateButton(AppCtrl *ctrl)
    {
        Button *button = button_push();
        button_text(button, "Ok");
        button_OnClick(button, listener(ctrl, OnClick, AppCtrl));
    }

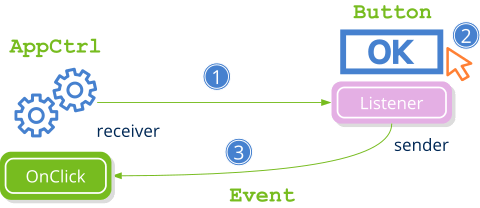

    Scheme showing the different steps in event management.
    Figure 1: OnClick event.
Events are used in bulk in GUI applications, but can also be useful in command line applications. See for example hfile_dir_loop in File operations.
❮ Back
Next ❯

listener ()

Create a listener. This function will link an event sender with the receiver, usually the application controller. The sender object is responsible for destroying the listener.

Listener*
listener(type *obj,
         FPtr_event_handler func_event_handler,
         type);
obj

Receiver object that will be passed as the first parameter to func_event_handler.

func_event_handler

Callback function that will be called when the event occurs. Also known as event handler.

type

The type of receiver object.

Return

Listener object.


listen ()

Like listener, but used in C++ to define class callbacks. Use of C++.

void
listen(void);

listener_destroy ()

Destroy a listener.

void
listener_destroy(Listener **listener);
listener

Listener. Will be set to NULL after destruction.

Remarks

The sender is responsible for destroying the listener.


listener_update ()

Update the receiver and event handler. It is equivalent to destroying it, and creating it again.

void
listener_update(Listener **listener,
                Listener *new_listener);
listener

The current listener.

new_listener

The new listener.

Remarks

This method must be used within the sender.


listener_event ()

Launches an event from the sender to the receiver.

void
listener_event(Listener *listener,
               const uint32_t type,
               sender_type *sender,
               params_type *params,
               result_type *result,
               sender_type,
               params_type,
               result_type);
listener

List through which the event will be sent.

type

Event code.

sender

Event sender.

params

Event parameters, or NULL if it doesn't have.

result

Event result, or NULL if not expected.

sender_type

Type of sender object.

params_type

Type of params object, or void if it does not have.

result_type

Type of result object, or void if it does not have.

Remarks

This method must be invoked within the event sender.


listener_pass_event ()

Pass the received event to another object, changing only the sender. Useful for not generating a new Event object.

void
listener_pass_event(Listener *list,
                    Event *event,
                    sender_type *sender,
                    sender_type);
list

List through which the event will be resent.

event

Incoming event.

sender

The new event sender.

sender_type

Sender object type.

Remarks

This method must be invoked within the event sender.


event_type ()

Get the event type.

uint32_t
event_type(const Event *event);
event

Event.

Return

The event type. Normally associated with a enum. Examples in core_event_t, gui_event_t.


event_sender ()

Get the event sender.

type*
event_sender(Event *event,
             type);
event

Event.

type

Sender type.

Return

Sender.


event_params ()

Get the event parameters, encapsulated in a structure, which will be different depending on the event type.

type*
event_params(Event *event,
             type);
event

Event.

type

Parameters type.

Return

Event parameters.


event_result ()

Gets an object to write the results of the event. Some events require the return of data by the receiver. The type of result object will depend on the type of event.

type*
event_result(Event *event,
             type);
event

Event.

type

Result type.

Return

Event results.
