Memory

This page has been automatically translated using the Google Translate API services. We are working on improving texts. Thank you for your understanding and patience.

Generic manipulation of memory blocks and heap handling.

Functions

From the programmer perspective, access to memory is done through variables and manipulated through the language operators (+, -, *, =, ...) and always in the same way, regardless of how the variables were created or in what memory zone they are hosted. Within bmem.h we have several functions to make copies, assignments or checks of generic memory blocks. This module also defines functions for dynamic memory manipulation (Heap).

• Use bmem_malloc to reserve a dynamic memory block.
• Use bmem_free to free a block of dynamic memory.
• Use bmem_copy to copy the contents of two memory blocks, previously reserved.

1. Stack Segment

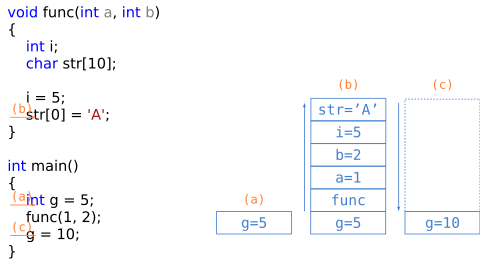

The memory of a compiled and running C program is divided into several segments. One of them is the stack, a space of variable but limited size, where local variables and function calls (call stack) are stored. It grows and shrinks as the process enters and leaves areas or functions (Figure 1). It is automatically managed by the compiler as a LIFO Last-in First-out structure, so it goes unnoticed most of the time, since it does not require extra attention from the programmer. We are aware of its existence when receiving the Stack Overflow error, usually caused by infinite recursion or the reservation of very large C vectors (Listing 1). The debugger allows us to inspect the state of the stack at execution time Debugging the program.

1
2
3

int func(int n) { func(n); } // Stack Overflow

float v[2000000]; // Stack Overflow

While the use of the stack is ideal due to its high performance, security and ease of use, sometimes falls short. On the one hand, it is necessary to foresee in the design time the amount of memory needed and define it statically (eg. struct Product pr[100];), something very inflexible when it comes to building real applications. On the other hand, variables are destroyed when closing a scope or leaving a function, which prevents sharing data globally.

2. Heap Segment

The heap is a memory zone that the process can request on demand, through calls to the system. It is complementary to the stack and is characterized by:

• It can be accessed globally, from any point of the program through a pointer.
• The amount of available memory is practically unlimited.
• It is less efficient than the stack.
• Requires management. Operating systems provide functions for requesting dynamic memory blocks (HeapAlloc(), sbrk()), being the responsibility of the process, or rather the programmer, to release these blocks when they are no longer needed.

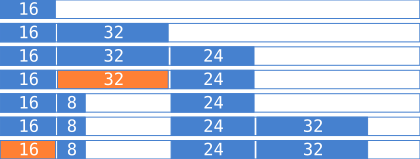

As allocations and de-allocations can be made in any order, internal fragmentation occurs as the program progresses (Figure 2). Here would come into play the so-called memory manager, which are algorithms that allow optimizing the use of the heap by compacting it and reusing the released blocks. The standard C library provides the familiar functions malloc()/free(), which implement a generic memory manager through system calls.

NAppGUI implements its own dynamic memory manager/auditor Heap very optimized to serve numerous requests of small size, which is what applications demand normally. bmem_malloc/bmem_free connect to the operating system through system calls and should not be used directly.

bmem_malloc ()

Reserve a memory block with the default alignment sizeof(void*).

byte_t*
bmem_malloc(const uint32_t size);

Return

Pointer to the new block. Must be released with bmem_free when it is no longer necessary.

Remarks

Use Heap for more efficient and secure allocations.

bmem_realloc ()

Reallocs an existing memory block due to the expansion or reduction of it. Guarantees that the previous content of the block is preserved min(size, new_size). Try to do it without moving memory (in situ), but if it is not possible look for a new zone. It also guarantees the default alignment sizeof(void*) if has to reserve a new block.

byte_t*
bmem_realloc(byte_t *mem,
             const uint32_t size,
             const uint32_t new_size);

Return

Pointer to the relocated block. It will be the same as the original pointer mem if the relocation "in-situ" has been successful. Must be released with bmem_free when it is no longer necessary.

Remarks

Use Heap for more efficient and secure allocations.

bmem_aligned_malloc ()

Reserve a memory block with alignment.

byte_t*
bmem_aligned_malloc(const uint32_t size,
                    const uint32_t align);

Return

Pointer to the new block. Must be released with bmem_free when it is no longer necessary.

Remarks

Use Heap for more efficient and secure allocations.

bmem_aligned_realloc ()

Like bmem_realloc, but it guarantees a specific alignment.

byte_t*
bmem_aligned_realloc(byte_t *mem,
                     const uint32_t size,
                     const uint32_t new_size,
                     const uint32_t align);

Return

Pointer to the relocated block.

Remarks

Use Heap for more efficient and secure allocations.

bmem_free ()

Free memory pointed by mem, previously reserved by bmem_malloc, bmem_realloc or its equivalents with alignment.

void
bmem_free(byte_t *mem);

Remarks

Use Heap for more efficient and secure allocations.

bmem_set1 ()

Fill a block of memory with the same 1-byte mask.

void
bmem_set1(byte_t *dest,
          const uint32_t size,
          const byte_t mask);

bmem_set4 ()

Fill a block of memory with the same 4-byte mask.

void
bmem_set4(byte_t *dest,
          const uint32_t size,
          const byte_t *mask);

1
2
3
4

byte_t mblock[10];
byte_t mask[4] = "abcd";
bmem_set4(mblock, 10, mask);
/* mblock = "abcdabcdab" */

bmem_set8 ()

Fill a block of memory with the same 8-byte mask.

void
bmem_set8(byte_t *dest,
          const uint32_t size,
          const byte_t *mask);

bmem_set16 ()

Fill a block of memory with the same 16-byte mask.

void
bmem_set16(byte_t *dest,
           const uint32_t size,
           const byte_t *mask);

bmem_set_u32 ()

Fill an array of type uint32_t with the same value.

void
bmem_set_u32(uint32_t *dest,
             const uint32_t n,
             const uint32_t value);

bmem_set_r32 ()

Fills an array of type real32_t with the same value.

void
bmem_set_r32(real32_t *dest,
             const uint32_t n,
             const real32_t value);

bmem_cmp ()

Compare two generic memory blocks.

int
bmem_cmp(const byte_t *mem1,
         const byte_t *mem2,
         const uint32_t size);

Return

Comparison result.

bmem_is_zero ()

Check if a memory block is completely filled with 0s.

bool_t
bmem_is_zero(const byte_t *mem,
             const uint32_t size);

Return

TRUE if all positions are 0, otherwise FALSE.

bmem_set_zero ()

Fill a memory block with 0s.

void
bmem_set_zero(byte_t *dest,
              const uint32_t size);

bmem_zero ()

Initialize an object with 0s.

void
bmem_zero(type *dest,
          type);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

typedef struct
{
    uint32_t f1;
    real32_t f2;
    String *f3;
    ...
} MyType;

MyType t1;
bmem_zero(&t1, MyType);
/* t1 = {0} */

bmem_zero_n ()

Initialize an array of objects with 0s.

void
bmem_zero_n(type *dest,
            const uint32_t n,
            type);

bmem_copy ()

Copy the contents of one block in another. The blocks must not be overlapping.

void
bmem_copy(byte_t *dest,
          const byte_t *src,
          const uint32_t size);

bmem_copy_n ()

Copy an array of objects to another location.

void
bmem_copy_n(type *dest,
            const type *src,
            const uint32_t n,
            type);

1
2
3

real32_t v1[64];
real32_t v2[64]; = {1.f, 45.f, 12.4f, ...};
bmem_copy_n(v1, v2, 64, real32_t);

bmem_move ()

Like bmem_copy, but the blocks can overlap.

void
bmem_move(byte_t *dest,
          const byte_t *src,
          const uint32_t size);

Remarks

If we have the certainty that both blocks do not overlap, bmem_copy is much more efficient.

bmem_overlaps ()

Check if two memory blocks overlap.

bool_t
bmem_overlaps(byte_t *mem1,
              byte_t *mem2,
              const uint32_t size1,
              const uint32_t size2);

Return

TRUE if there is overlap.

bmem_rev ()

Reverts a memory block m[i] = m[ni-1].

void
bmem_rev(byte_t *mem,
         const uint32_t size);

bmem_rev2 ()

Reverts a 2-byte memory block.

void
bmem_rev2(byte_t *mem);

bmem_rev4 ()

Reverts a 4-byte memory block.

void
bmem_rev4(byte_t *mem);

bmem_rev8 ()

Reverts an 8-byte memory block.

void
bmem_rev8(byte_t *mem);

bmem_revcopy ()

Make a reverse copy of a memory block.

void
bmem_revcopy(byte_t *dest,
             const byte_t *src,
             const uint32_t size);

bmem_rev_elems ()

Reverts the elements inside an array.

void
bmem_rev_elems(type*,
               const uint32_t num_elems,
               type);

bmem_swap ()

Exchanges the contents of two memory blocks (not overlapping). At end, mem1[i] = mem2[i] and mem2[i] = mem1[i].

void
bmem_swap(byte_t *mem1,
          byte_t *mem2,
          const uint32_t size);

bmem_swap_type ()

Exchange the contents of two objects.

void
bmem_swap_type(type *obj1,
               type *obj2,
               type);

bmem_shuffle ()

Randomly shuffles a memory block.

void
bmem_shuffle(byte_t *mem,
             const uint32_t size,
             const uint32_t esize);

Remarks

This function is based on a pseudo-random number generator. Use bmath_rand_seed to change the sequence.

bmem_shuffle_n ()

Randomly shuffle an object array.

void
bmem_shuffle_n(type *array,
               const uint32_t size,
               type);

Remarks

This function is based on a pseudo-random number generator. Use bmath_rand_seed to change the sequence.
