Functions

UpDown*updown_create (void)
voidupdown_OnClick (...)
voidupdown_tooltip (...)

UpDown are two-part horizontally divided button controls (Figure 1). Each part has a small arrow printed and is normally used to make discrete increases in numerical values associated with controls Edit.

  • Use updown_create to create an updown button.
  • Use updown_OnClick to respond to keystrokes.
  • Window where several updowns controls appear next to editbox.

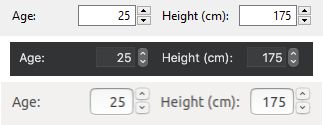

    Figure 1: UpDown on Windows, macOS and Linux.
❮ Back
Next ❯

updown_create ()

Create an updown control.

UpDown*
updown_create(void);

Return

The updown.


updown_OnClick ()

Set an event handler for pressing the button.

void
updown_OnClick(UpDown *updown,
               Listener *listener);
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
static void i_OnClick(App *app, Event *e)
{
    const EvButton *p = event_params(e, EvButton);
    if (p->index == 0)
        do_something_onup(app);
    else
        do_something_ondown(app);
}
...
updown_OnClick(updown, listener(app, i_OnClick, App));
updown

The updown.

listener

Callback function to be called after clicking.

Remarks

See GUI Events.


updown_tooltip ()

Set a tooltip for the button. It is a small explanatory text that will appear when the mouse is over the control.

void
updown_tooltip(UpDown *updown,
               const char_t *text);
updown

The updown.

text

UTF8 C-string terminated in null character '\0'.
