SplitView

This page has been automatically translated using the Google Translate API services. We are working on improving texts. Thank you for your understanding and patience.

Header

#include <gui/splitview.h>

Functions

SplitView*	splitview_horizontal (void)
SplitView*	splitview_vertical (void)
void	splitview_view (...)
void	splitview_textview (...)
void	splitview_webview (...)
void	splitview_tableview (...)
void	splitview_splitview (...)
void	splitview_panel (...)
void	splitview_pos (...)
real32_t	splitview_get_pos (...)
void	splitview_visible0 (...)
void	splitview_visible1 (...)
void	splitview_minsize0 (...)
void	splitview_minsize1 (...)

1. Add controls
2. Positioning the divider
3. Divider minimum size

The SplitView are views divided into two parts, where in each of them we place another child view or panel. The divider line is draggable, which allows to resize parts, distributing the total control size between both descendants. In Hello SplitView! you have an example of use (Listing 1), (Figure 1).

Use splitview_horizontal to create a up/down view.
Use splitview_vertical to create a left/right view.

Listing 1: Two SplitView with several associated controls.

SplitView *split1 = splitview_vertical();
SplitView *split2 = splitview_horizontal();
Panel *panel = i_left_panel();
View *view = view_create();
TextView *text = textview_create();
view_size(view, s2df(400, 200));
textview_size(text, s2df(400, 200));
splitview_panel(split1, panel);
splitview_view(split2, view, FALSE);
splitview_textview(split2, text, FALSE);
splitview_splitview(split1, split2);

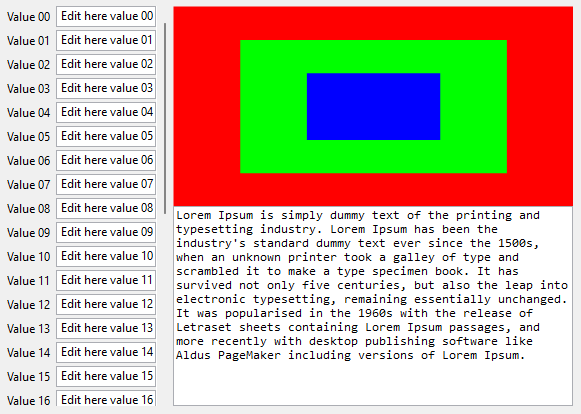

Capture of a window with views divided into Windows system. — Figure 1: SplitView controls.

1. Add controls

We have several functions to add content to the SplitView. The first call will place the view or panel on the left or upper side. The second call will make it on the right or bottom side. Successive calls will generate an error, since each view supports a maximum of two descendants.

Use splitview_view to add a view.
Use splitview_textview to add a text view.
Use splitview_webview to add a web view.
Use splitview_tableview to add a table.
Use splitview_splitview to add a nested SplitView (Figure 2).
Use splitview_panel to add a panel.

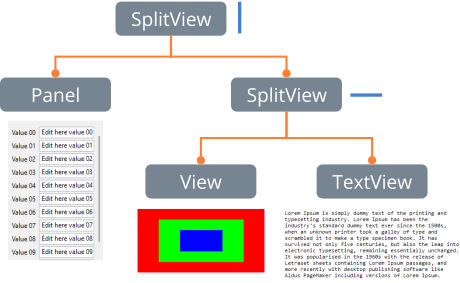

Tree scheme, which shows how several SplitView and their descendant controls. — Figure 2: Nested SplitView.

2. Positioning the divider

Use splitview_pos to set the divider position.
Use splitview_get_pos to get the divider position.

The initial position of the divider, as well as the size of the SplitView will be calculated according to the Natural sizing of children controls (Figure 3).

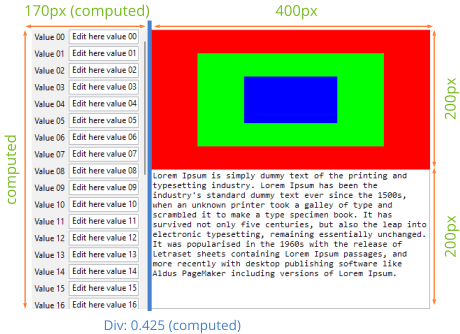

Image that represents the default position of a SplitView. — Figure 3: Divider default position in (Listing 1).

The divider will have different behaviors when the size of SplitView changes, depending on the parameter split_mode_t of splitview_pos:

ekSPLIT_NORMAL: The position of the divider will always remain constant with respect to the size of the SplitView. That is, a 0.3 value means that the left view will always occupy 1/3 of the total size and right 2/3. To do this, indicate a value between 0 and 1 in the pos parameter.
ekSPLIT_FIXED0: The size changes of the SplitView will always leave the left/upper child with a constant size.
ekSPLIT_FIXED1: The right/lower child will maintain its size.

The divider proportional or fixed value will change if the user drags it with the mouse, but the mode will not change.

3. Divider minimum size

Use splitview_minsize0 to set the minimum size of the left/upper child.
Use splitview_visible0 to completely hide the left/upper child.

It is possible that the children controls impose minimal size restrictions that prevent the divisor from moving beyond these limits. However, it is possible to establish minimums from the SplitView itself. It is also possible to completely hide one of the descendants. In this case, the divider bar will disappear, using the entire SplitView space for the visible descendant.

splitview_horizontal ()

Create a SplitView with horizontal division.

SplitView*
splitview_horizontal(void);

Return

The new view.

splitview_vertical ()

Create a SplitView with vertical division.

SplitView*
splitview_vertical(void);

Return

The new view.

splitview_view ()

Add a view to SplitView.

void
splitview_view(SplitView *split,
               View *view,
               const bool_t tabstop);

split	The SplitView.
view	The child view.
tabstop	`TRUE` if we want the view to be part of the tablist. See Tabstops.

Remarks

See Add controls.

splitview_textview ()

Add a text view to SplitView.

void
splitview_textview(SplitView *split,
                   TextView *view,
                   const bool_t tabstop);

split	The SplitView.
view	The text view.
tabstop	`TRUE` if we want the view to be part of the tablist. See Tabstops.

Remarks

See Add controls.

splitview_webview ()

Add a web view to SplitView.

void
splitview_webview(SplitView *split,
                  WebView *view,
                  const bool_t tabstop);

split	The SplitView.
view	The web view.
tabstop	`TRUE` if we want the view to be part of the tablist. See Tabstops.

Remarks

See Add controls.

splitview_tableview ()

Add a table view to SplitView.

void
splitview_tableview(SplitView *split,
                    TableView *view,
                    const bool_t tabstop);

split	The SplitView.
view	The table view.
tabstop	`TRUE` if we want the view to be part of the tablist. See Tabstops.

Remarks

See Add controls.

splitview_splitview ()

Add a child SplitView to SplitView.

void
splitview_splitview(SplitView *split,
                    SplitView *view);

split	The SplitView.
view	The child SplitView.

Remarks

See Add controls.

splitview_panel ()

Add a panel to SplitView.

void
splitview_panel(SplitView *split,
                Panel *panel);

split	The SplitView.
panel	The panel.

Remarks

See Add controls.

splitview_pos ()

Set the divider position and mode.

void
splitview_pos(SplitView *split,
              const split_mode_t mode,
              const real32_t pos);

split	The SplitView.
mode	The behavior mode.
pos	The new divider position.

Remarks

Ver Positioning the divider.

splitview_get_pos ()

Get the current divider position.

real32_t
splitview_get_pos(const SplitView *split,
                  const split_mode_t mode);

split	The SplitView.
mode	The unit in which we want the result.

Return

The divider position.

Remarks

Ver Positioning the divider.

splitview_visible0 ()

Show/hide the left/upper child.

void
splitview_visible0(SplitView *split,
                   const bool_t visible);

split	The SplitView.
visible	Show or hide.

Remarks

Ver Divider minimum size.

splitview_visible1 ()

Show/hide the right/bottom child.

void
splitview_visible1(SplitView *split,
                   const bool_t visible);

split	The SplitView.
visible	Show or hide.

Remarks

Ver Divider minimum size.

splitview_minsize0 ()

Set the minimum size of the left/upper child.

void
splitview_minsize0(SplitView *split,
                   const real32_t size);

split	The SplitView.
size	Minimum size.

Remarks

Ver Divider minimum size.

splitview_minsize1 ()

Set the minimum size of the right/bottom child.

void
splitview_minsize1(SplitView *split,
                   const real32_t size);

split	The SplitView.
size	Minimum size.

Remarks

Ver Divider minimum size.
