Functions

WebView*webview_create (void)
voidwebview_OnFocus (...)
voidwebview_size (...)
voidwebview_navigate (...)
voidwebview_back (...)
voidwebview_forward (...)

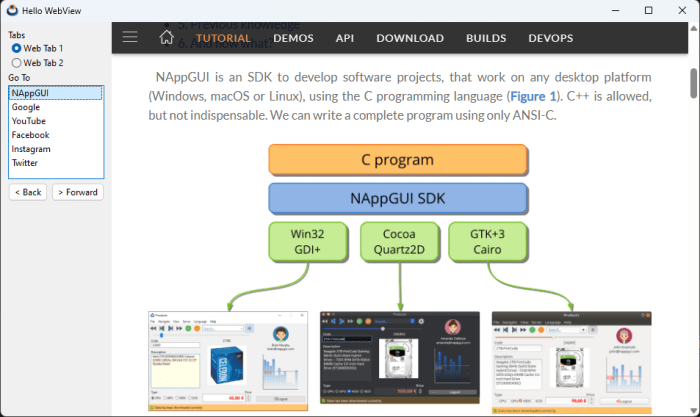

A WebView control will allow us to embed Web content in our application. It will behave in the same way as other view controls such as View or TextView in terms of layout or resizing, displaying a fully functional browser in its client area (Figure 1). In Hello WebView! you have an example application.


1. WebView dependencies

WebView depends on native technologies in each operating system: Edge:WebView2 on Windows, WebKit2 on GTK/Linux and WKWebView on macOS (Figure 2). The NAppGUI build system will be in charge of managing the dependencies for us automatically. However, you must take these points into account before using this control in your applications successfully.

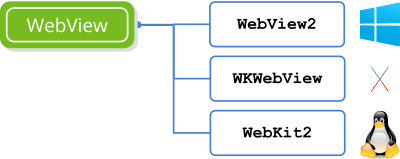

WebView dependency tree.
Figure 2: Native WebView dependencies.

1.1. WebView on Windows

  • In the prj/depend/web/win folder are the WebView2 headers and static libraries.
  • They have been obtained from this NuGet package.
  • There are problems when compiling in Debug mode from VS2017 and VS2015. However, in Release mode, applications work without problem using these versions of Visual Studio. More information here.
  • Visual Studio 2013 and earlier do not support compilation of WebView2.
  • MinGW does not support the compilation of WebView2.
  • It is recommended to use VS2019 or VS2022 to generate applications with WebView2.
  • WebView2 only works on Windows 10 and Windows 11.

1.2. WebView on macOS

You don't have to do anything special to compile the WebView on macOS. CMake will automatically link to WebKit.framework. At the moment, this support is available for macOS 10.10 Yosemite and later, as WKWebView is not present in previous distributions.

1.3. WebView on Linux

We will need to install the WebKit2 development libraries on our system so that CMake can enable Web support in NAppGUI.

Installing WebKit2 on Ubuntu.

sudo apt-get install libwebkit2gtk-4.1-dev  // Ubuntu 24
sudo apt-get install libwebkit2gtk-4.1-dev  // Ubuntu 22
sudo apt-get install libwebkit2gtk-4.0-dev  // Ubuntu 20
sudo apt-get install libwebkit2gtk-4.0-dev  // Ubuntu 18
sudo apt-get install libwebkit2gtk-4.0-dev  // Ubuntu 16
sudo apt-get install libwebkit2gtk-3.0-dev  // Ubuntu 14
WebKit2 support is not available on Ubuntu 12 and earlier.

2. Disable WebView

If the NAppGUI CMake script does not detect the native libraries required by the WebView control on your system, it will disable it. You can also do this explicitly using this CMake parameter.


cmake -DNAPPGUI_WEB=NO -S . -B build

By disabling Web support, applications that make use of the WebView control will compile and be able to run. The difference is that they will not display Web content in the control, just an empty area (Figure 3).

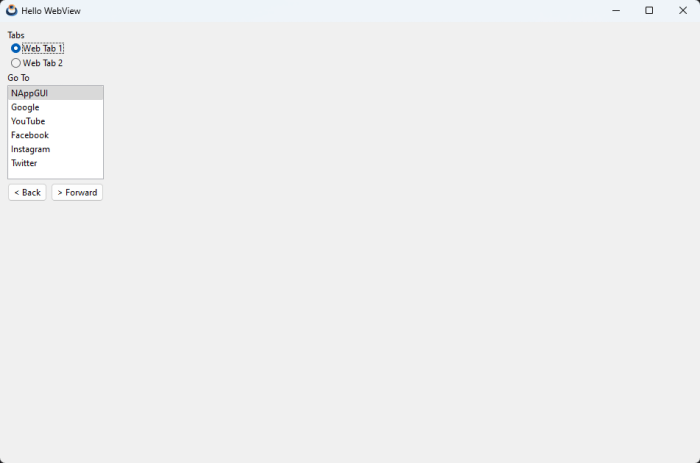

Screenshot of WebHello application with WebView support disabled.
Figure 3: Application with Web support disabled.
Disabling Web support will not generate compilation or link errors in applications that use the WebView.
❮ Back
Next ❯

webview_create ()

Create a Web View.

WebView*
webview_create(void);

Return

The Web View.


webview_OnFocus ()

Sets a handler for keyboard focus.

void
webview_OnFocus(WebView *view,
                Listener *listener);
view

The view.

listener

callback function that will be called when keyboard focus is received or lost.

Remarks

See GUI Events.


webview_size ()

Sets the default size of the view.

void
webview_size(WebView *view,
             const S2Df size);
view

The view.

size

The size.

Remarks

Corresponds to the Natural sizing of the control. By default 245x144.


webview_navigate ()

Loads a URL in the web view.

void
webview_navigate(WebView *view,
                 const char_t *url);
view

The view.

url

URL to load, null-terminated UTF8 C string '\0'.


webview_back ()

Go back to the previous page in the browser stack.

void
webview_back(WebView *view);
view

The view.


webview_forward ()

Moves to the next page in the browser stack.

void
webview_forward(WebView *view);
view

The view.
