Button

❮ Back
Next ❯
This page has been automatically translated using the Google Translate API services. We are working on improving texts. Thank you for your understanding and patience.

Functions

Button*button_push (void)
Button*button_check (void)
Button*button_check3 (void)
Button*button_radio (void)
Button*button_flat (void)
Button*button_flatgle (void)
voidbutton_OnClick (...)
voidbutton_text (...)
voidbutton_text_alt (...)
voidbutton_tooltip (...)
voidbutton_font (...)
voidbutton_image (...)
voidbutton_image_alt (...)
voidbutton_state (...)
state_tbutton_get_state (...)

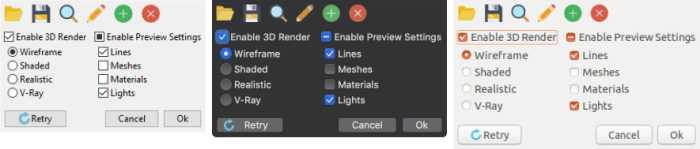

The buttons are another classic element in graphic interfaces, where we distinguish four types: the push button, checkbox, radiobutton and flat button typical of toolbars (Figure 1) . In Hello Button! you have an example of use.

In addition to capturing the event and notifying the application, the checkbox and flatgle maintain a state (pressed/check or released/uncheck).

Special mention is required of the radio buttons, which only make sense when they appear in a group, since they are used to select a single option within a set. Groups are formed at the Layout level, that is, all radiobuttons of the same layout will be considered from the same group, where only one of them can be selected. If we need several sub-groups, we must create several sub-layout, as shown (Figure 2) (Listing 1). When capturing the event, the field indexfrom EvButton will indicate the index of the button that has been pressed.

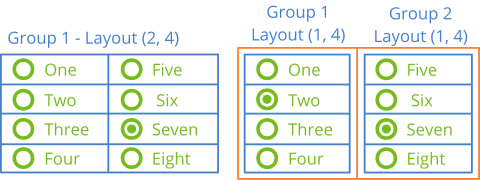

Examples of radio groups. A group of eight options and two groups of four.
Figure 2: Radio groups linked to different layouts.
Listing 1: Radio button groups.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Button *button1 = button_radio();
Button *button2 = button_radio();
Button *button3 = button_radio();
Button *button4 = button_radio();
Button *button5 = button_radio();
Button *button6 = button_radio();
Button *button7 = button_radio();
Button *button8 = button_radio();
button_text(button1, "One");
button_text(button2, "Two");
button_text(button3, "Three");
button_text(button4, "Four");
button_text(button5, "Five");
button_text(button6, "Six");
button_text(button7, "Seven");
button_text(button8, "Eight");

// One group - One layout
Layout *layout = layout_create(2, 4);
layout_button(layout, button1, 0, 0);
layout_button(layout, button2, 0, 1);
layout_button(layout, button3, 0, 2);
layout_button(layout, button4, 0, 3);
layout_button(layout, button5, 1, 0);
layout_button(layout, button6, 1, 1);
layout_button(layout, button7, 1, 2);
layout_button(layout, button8, 1, 3);

// Two groups - Two sub-layouts
Layout *layout1 = layout_create(2, 1);
Layout *layout2 = layout_create(1, 4);
Layout *layout3 = layout_create(1, 4);
layout_button(layout2, button1, 0, 0);
layout_button(layout2, button2, 0, 1);
layout_button(layout2, button3, 0, 2);
layout_button(layout2, button4, 0, 3);
layout_button(layout3, button5, 0, 0);
layout_button(layout3, button6, 0, 1);
layout_button(layout3, button7, 0, 2);
layout_button(layout3, button8, 0, 3);
layout_layout(layout, layout1, 0, 0);
layout_layout(layout, layout2, 1, 0);

button_push ()

Create a push button, the typical [Accept], [Cancel], etc.

Button*
button_push(void);

Return

The button.


button_check ()

Create a checkbox.

Button*
button_check(void);

Return

The button.


button_check3 ()

Create a checkbox with three states.

Button*
button_check3(void);

Return

The button.


button_radio ()

Create a radio button.

Button*
button_radio(void);

Return

The button.


button_flat ()

Create a flat button, to which an image can be assigned. It is the typical toolbar button.

Button*
button_flat(void);

Return

The button.


button_flatgle ()

Create a flat button with status. The button will alternate between pressed/released each time you click on it.

Button*
button_flatgle(void);

Return

The button.


button_OnClick ()

Set a function for pressing the button.

void
button_OnClick(Button *button,
               Listener *listener);
button

The button.

listener

Callback function to be called after clicking.

Remarks

See GUI Events.


button_text ()

Set the text that the button will display.

void
button_text(Button *button,
            const char_t *text);
button

The button.

text

UTF8 C-string terminated in null character '\0'.

Remarks

In flat buttons, the text will be displayed as tooltip.


button_text_alt ()

Set an alternative text.

void
button_text_alt(Button *button,
                const char_t *text);
button

The button.

text

UTF8 C-string terminated in null character '\0'.

Remarks

Only applicable on flat buttons with status button_flatgle. It will be displayed when the button is in ekON status.


button_tooltip ()

Set a tooltip for the button. It is a small explanatory text that will appear when the mouse is over the control.

void
button_tooltip(Button *button,
               const char_t *text);
button

The button.

text

UTF8 C-string terminated in null character '\0'.


button_font ()

Set the button font.

void
button_font(Button *button,
            const Font *font);
button

The button.

font

Font.


button_image ()

Set the icon that will show the button.

void
button_image(Button *button,
             const Image *image);
button

The button.


Image.

Remarks

Not applicable in checkbox or radiobutton. In flat buttons, the size of the control will be adjusted to the image.


button_image_alt ()

Set an alternative image for the button.

void
button_image_alt(Button *button,
                 const Image *image);
button

The button.


Image.

Remarks

Only applicable on flat buttons with status button_flatgle. It will be displayed when the button is in ekON status.


button_state ()

Set the button status.

void
button_state(Button *button,
             const state_t state);
button

The button.

state

State.

Remarks

Not applicable on push buttons button_push.


button_get_state ()

Get button status.

state_t
button_get_state(Button *button);
button

The button.

Return

The state.

Remarks

Not applicable on push buttons button_push.
