Core

This page has been automatically translated using the Google Translate API services. We are working on improving texts. Thank you for your understanding and patience.

A strong core will improve your technique, strength, endurance and will complement everything you do. Susan Trainor

Functions

void	(*FPtr_remove (...))
void	(*FPtr_event_handler (...))
type*	(*FPtr_read (...))
void	(*FPtr_read_init (...))
void	(*FPtr_write (...))
void	core_start (void)
void	core_finish (void)

Types and Constants

	DeclSt
	DeclPt
enum	core_event_t
enum	sstate_t
enum	vkey_t
enum	mkey_t
enum	token_t
enum	dbindst_t
struct	Buffer
struct	String
struct	ArrSt
struct	ArrPt
struct	SetSt
struct	SetPt
struct	Stream
struct	RegEx
struct	Event
struct	KeyBuf
struct	Listener
struct	IListener
struct	DirEntry
struct	EvFileDir
struct	ResPack
struct	ResId
struct	Clock

Just as a building needs a strong foundation, any software project must be supported by robust and efficient pillars. For this purpose, the core library has been developed (Figure 1), which provides commonly used non-graphical utilities. In addition to being the basis of NAppGUI-SDK, it will also facilitate the development of our own programs and libraries, guaranteeing maximum efficiency and portability. core has no external dependencies, except Osbs, which will provide the elementary calls to the operating system.

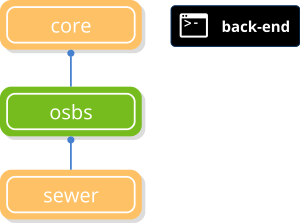

Core library dependency tree. — Figure 1: *core* dependencies. See NAppGUI API.

The power of core lies in the efficient and safe management of memory, together with the automation of operations on objects and the management of collections based on arrays and binary search trees (Figure 2). All this would be incomplete without a robust serialization system, which allows us to export/import data from/to memory, using different communication channels.

Heap. Paged memory manager with leaks auditor.
Buffers. Generic dynamic memory block.
Strings. Text strings in dynamic memory.
Arrays. Collection of elements in contiguous memory locations.
Sets. Container that optimizes the search, insertion and deletion of elements.
Data binding. Automation of operations on objects.
Streams. Input and output channels. Incorporates a text parser to read tokens.

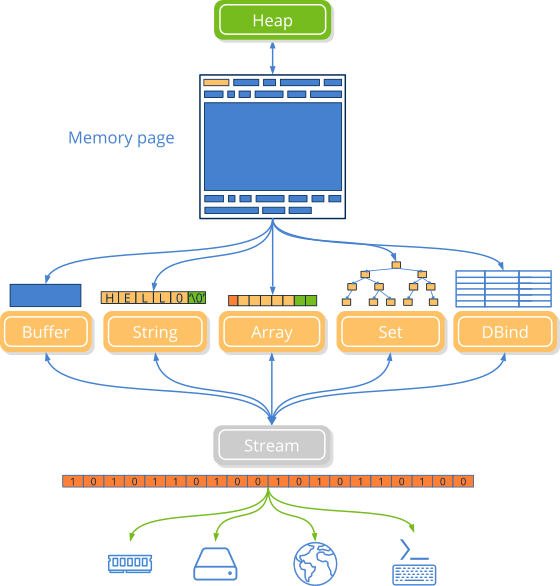

Chart showing the relationship between memory pages, data structures, and I/O channels. — Figure 2: Relationship between memory management, data structures and streams.

Additionally, core provides these utilities:

Regular expressions.
Events. Base for the event management subsystem.
File operations. File and directory utilities.
Resource packs.
Dates. Date/time related functions.
Clocks. Accurate time measurement.

DeclSt

Enables macros for compile-time type checking in Arrays and Sets. Usage: DeclSt(Type) immediately after the definition of the struct Type.

DeclPt

Same as DeclSt for pointer containers.

enum core_event_t

Event types in core library.

enum core_event_t
{
    ekEASSERT,
    ekEFILE,
    ekEENTRY,
    ekEEXIT
};

ekEASSERT	Redirection of Asserts.
ekEFILE	A file detected while browsing a directory. hfile_dir_loop.
ekEENTRY	Entry in a sub-directory while we go through a directory. hfile_dir_loop.
ekEEXIT	Exit of a sub-directory.

enum sstate_t

Streams state.

enum sstate_t
{
    ekSTOK,
    ekSTEND,
    ekSTCORRUPT,
    ekSTBROKEN
};

ekSTOK	All ok, no errors.
ekSTEND	No more data on the channel.
ekSTCORRUPT	The data in the channel is invalid or has not been read correctly.
ekSTBROKEN	Error in the communication channel.

enum vkey_t

Keyboard codes. See Using the keyboard.

enum vkey_t
{
    ekKEY_UNDEF,
    ekKEY_A,
    ekKEY_S,
    ekKEY_D,
    ekKEY_F,
    ekKEY_H,
    ekKEY_G,
    ekKEY_Z,
    ekKEY_X,
    ekKEY_C,
    ekKEY_V,
    ekKEY_BSLASH,
    ekKEY_B,
    ekKEY_Q,
    ekKEY_W,
    ekKEY_E,
    ekKEY_R,
    ekKEY_Y,
    ekKEY_T,
    ekKEY_1,
    ekKEY_2,
    ekKEY_3,
    ekKEY_4,
    ekKEY_6,
    ekKEY_5,
    ekKEY_9,
    ekKEY_7,
    ekKEY_8,
    ekKEY_0,
    ekKEY_RCURLY,
    ekKEY_O,
    ekKEY_U,
    ekKEY_LCURLY,
    ekKEY_I,
    ekKEY_P,
    ekKEY_RETURN,
    ekKEY_L,
    ekKEY_J,
    ekKEY_SEMICOLON,
    ekKEY_K,
    ekKEY_QUEST,
    ekKEY_COMMA,
    ekKEY_MINUS,
    ekKEY_N,
    ekKEY_M,
    ekKEY_PERIOD,
    ekKEY_TAB,
    ekKEY_SPACE,
    ekKEY_GTLT,
    ekKEY_BACK,
    ekKEY_ESCAPE,
    ekKEY_F17,
    ekKEY_NUMDECIMAL,
    ekKEY_NUMMULT,
    ekKEY_NUMADD,
    ekKEY_NUMLOCK,
    ekKEY_NUMDIV,
    ekKEY_NUMRET,
    ekKEY_NUMMINUS,
    ekKEY_F18,
    ekKEY_F19,
    ekKEY_NUMEQUAL,
    ekKEY_NUM0,
    ekKEY_NUM1,
    ekKEY_NUM2,
    ekKEY_NUM3,
    ekKEY_NUM4,
    ekKEY_NUM5,
    ekKEY_NUM6,
    ekKEY_NUM7,
    ekKEY_NUM8,
    ekKEY_NUM9,
    ekKEY_F5,
    ekKEY_F6,
    ekKEY_F7,
    ekKEY_F3,
    ekKEY_F8,
    ekKEY_F9,
    ekKEY_F11,
    ekKEY_F13,
    ekKEY_F16,
    ekKEY_F14,
    ekKEY_F10,
    ekKEY_F12,
    ekKEY_F15,
    ekKEY_PAGEUP,
    ekKEY_HOME,
    ekKEY_SUPR,
    ekKEY_F4,
    ekKEY_PAGEDOWN,
    ekKEY_F2,
    ekKEY_END,
    ekKEY_F1,
    ekKEY_LEFT,
    ekKEY_RIGHT,
    ekKEY_DOWN,
    ekKEY_UP,
    ekKEY_LSHIFT,
    ekKEY_RSHIFT,
    ekKEY_LCTRL,
    ekKEY_RCTRL,
    ekKEY_LALT,
    ekKEY_RALT,
    ekKEY_INSERT,
    ekKEY_EXCLAM,
    ekKEY_MENU,
    ekKEY_LWIN,
    ekKEY_RWIN,
    ekKEY_CAPS,
    ekKEY_TILDE,
    ekKEY_GRAVE,
    ekKEY_PLUS
};

enum mkey_t

Modifier keys.

enum mkey_t
{
    ekMKEY_NONE,
    ekMKEY_SHIFT,
    ekMKEY_CONTROL,
    ekMKEY_ALT,
    ekMKEY_COMMAND
};

enum token_t

Token types on stm_read_token.

enum token_t
{
    ekTSLCOM,
    ekTMLCOM,
    ekTSPACE,
    ekTEOL,
    ekTLESS,
    ekTGREAT,
    ekTCOMMA,
    ekTPERIOD,
    ekTSCOLON,
    ekTCOLON,
    ekTOPENPAR,
    ekTCLOSPAR,
    ekTOPENBRAC,
    ekTCLOSBRAC,
    ekTOPENCURL,
    ekTCLOSCURL,
    ekTPLUS,
    ekTMINUS,
    ekTASTERK,
    ekTEQUALS,
    ekTDOLLAR,
    ekTPERCEN,
    ekTPOUND,
    ekTAMPER,
    ekTAPOST,
    ekTQUOTE,
    ekTCIRCUM,
    ekTTILDE,
    ekTEXCLA,
    ekTQUEST,
    ekTVLINE,
    ekTSLASH,
    ekTBSLASH,
    ekTAT,
    ekTINTEGER,
    ekTOCTAL,
    ekTHEX,
    ekTREAL,
    ekTSTRING,
    ekTIDENT,
    ekTUNDEF,
    ekTCORRUP,
    ekTEOF,
    ekTRESERVED
};

ekTSLCOM	One-line comment, which begins with `//`.
ekTMLCOM	Multi-line commentary, enclosed between `/` and `/`.
ekTSPACE	Represents a series of blanks (`' '`, `'\t'`, `'\v'`, `'\f'`, `'\r'`).
ekTEOL	Represents the new line character (`'\n'`).
ekTLESS	Less than sign `'<'`.
ekTGREAT	Greater than sign `'>'`.
ekTCOMMA	Comma sign `','`.
ekTPERIOD	Point sign `'.'`.
ekTSCOLON	Semicolon sign `';'`.
ekTCOLON	Colon sign `':'`.
ekTOPENPAR	Opening parenthesis `'('`.
ekTCLOSPAR	Closing parenthesis `')'`.
ekTOPENBRAC	Opening bracket `'['`.
ekTCLOSBRAC	Closing bracket `']'`.
ekTOPENCURL	Opening curly bracket `'{'`.
ekTCLOSCURL	Closing curly bracket `'}'`.
ekTPLUS	Plus sign `'+'`.
ekTMINUS	Minus sign `'-'`.
ekTASTERK	Asterisk sign `'*'`.
ekTEQUALS	Equal sign `'='`.
ekTDOLLAR	Dollar sign.
ekTPERCEN	Percentage sign `'%'`.
ekTPOUND	Pound sign `'#'`.
ekTAMPER	Ampersand sign `'&'`.
ekTAPOST	Apostrophe sign `'''`.
ekTQUOTE	Quotation sign `'"'`.
ekTCIRCUM	Circumflex accent sign `'^'`.
ekTTILDE	Tilde sign `'~'`.
ekTEXCLA	Exclamation sign `'!'`.
ekTQUEST	Question mark `'?'`.
ekTVLINE	Vertical bar sign `'\|'`.
ekTSLASH	Slash bar sign `'/'`.
ekTBSLASH	Backslash sign `'\'`.
ekTAT	At sign `'@'`.
ekTINTEGER	Integer number. Numbers.
ekTOCTAL	Octal number. Numbers.
ekTHEX	Hexadecimal number. Numbers.
ekTREAL	Real number. Numbers.
ekTSTRING	Unicode character string, enclosed in quotation marks. Strings.
ekTIDENT	Identifier. Identifiers.
ekTUNDEF	Unknown token.
ekTCORRUP	Error in the input Streams or data.
ekTEOF	End of the Streams or data. No more tokens.
ekTRESERVED	Keywords. Being of general purpose, the analyzer does not label any identifier as a reserved word. It must be done in phases after the analysis.

enum dbindst_t

Return values in dbind.

enum dbindst_t
{
    ekDBIND_OK,
    ekDBIND_MEMBER_EXISTS,
    ekDBIND_TYPE_EXISTS,
    ekDBIND_TYPE_USED,
    ekDBIND_ALIAS_SIZE
};

ekDBIND_OK	Successful operation.
ekDBIND_MEMBER_EXISTS	The member of a structure is already registered in DBind.
ekDBIND_TYPE_EXISTS	The data type is already registered in DBind.
ekDBIND_TYPE_USED	The data type to be deleted is in use.
ekDBIND_ALIAS_SIZE	The size of an alias type does not match that of the original type.

struct Buffer

Block of memory of general purpose, reserved dynamically. Once created, you can no longer resize. Buffers.

struct Buffer;

struct String

UTF8 character string reserved dynamically. They are "partially mutable" objects. The reserved memory can not grow, but characters can be substituted as long as the buffer's initial capacity does not overflow. Strings.

struct String;

struct ArrSt

Array of records. The type of object is indicated in parentheses. Arrays.

struct ArrSt;

struct ArrPt

Pointers array. The type of object is indicated in parentheses. Pointer arrays.

struct ArrPt;

struct SetSt

Set of records. The type of object is indicated in parentheses. Sets.

struct SetSt;

struct SetPt

Pointers set. The type of object is indicated in parentheses. Pointer sets.

struct SetPt;

struct Stream

Generic input/output channel, where it is possible to read and write formatted data. Streams.

struct Stream;

struct RegEx

Regular expresion. Regular expressions.

struct RegEx;

struct Event

Contains information regarding an event. Events.

struct Event;

struct KeyBuf

Keyboard buffer with the state of each key (pressed/released). Keyboard buffer.

struct KeyBuf;

struct Listener

Link to the generator and receiver of an event through a callback function Events.

struct Listener;

struct IListener

C++ interface for use class members as event handlers. Use of C++.

struct IListener;

struct DirEntry

Directory element, obtained by hfile_dir_list.

struct DirEntry
{
    String* name;
    file_type_t type;
    uint64_t size;
    Date date;
};

name	File or subdirectory name, without path.
type	Item type.
size	Size in bytes.
date	Date of last modification.

struct EvFileDir

Parameters of the event ekEFILE and ekEENTRY during automatic directory browsing. hfile_dir_loop.

struct EvFileDir
{
    const char_t* pathname;
    uint32_t level;
};

pathname	The partial path from the parameter `pathname` of hfile_dir_loop.
level	The depth of the directory from `pathname`.

struct ResPack

Package of resources that will be loaded together. Use ResId to access a specific resource. Resources.

struct ResPack;

struct ResId

Identifier of a resource. They are generated automatically by nrc NAppGUI Resource Compiler. Resources.

struct ResId;

struct Clock

It measures the time elapsed between two instants within the application, with micro-seconds precision. It is also useful for launching events at regular intervals of time.

struct Clock;

FPtr_remove

Releases the memory of an object's fields, but not the object itself.

void
(*FPtr_remove)(type *obj);

obj	Pointer to the object whose fields must be released.

FPtr_event_handler

Event handler. They are callback functions that will be called by the generator of an event when it happens. Events.

void
(*FPtr_event_handler)(type *obj,
                      Event *event);

obj	General data passed as the first parameter of the function.
event	The event.

FPtr_read

Create an object from data read from a Streams.

type*
(*FPtr_read)(Stream *stream);

stream

The I/O channel where the object is serialized.

Return

The created object, deserializing the stream data.

FPtr_read_init

Similar to FPtr_read where the memory of the object has already been reserved, but not initialized.

void
(*FPtr_read_init)(Stream *stream,
                  type *obj);

stream	The I/O channel where the object is serialized.
obj	The object whose fields must be deserialized.

FPtr_write

Write an object in a Streams.

void
(*FPtr_write)(Stream *stream,
              const type *obj);

stream	The I/O channel where serialize the object.
obj	The object to write.

core_start ()

Start the core library, reserving space for the global internal structures. Internally calls osbs_start.

void
core_start(void);

core_finish ()

Ends the core library, freeing the space of the global internal structures. Internally calls osbs_finish.

void
core_finish(void);
