A Layout is a virtual and transparent grid always linked with a Panel which serves to locate the different interface elements (Figure 1). Its inner cells have the ability to be automatically sized according to their content, which results in great portability because it is not necessary to indicate specific coordinates or sizes for the controls. To illustrate the concept, we will slightly simplify the code of Hello Edit and UpDown! (Listing 1), whose result we can see in (Figure 2).


1. Natural sizing

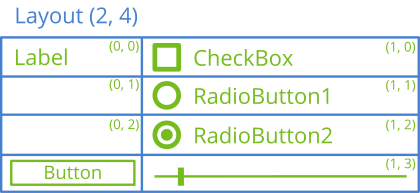

The result of (Figure 2), although it is not very aesthetic, it is what we call natural sizing which is the default layout applied depending on the content of the cells. In (Table 1) we have the default measurements of each control. The column width is fixed to that of the widest element and the height of the rows is calculated in the same way. The final size of the layout will be the sum of the measures of both columns and rows.

Table 1: Natural dimensioning of controls.
Control Width Height
Label Adjusted to the text. Adjusted to the text considering '\n'.
Button (push) Adjusted to text + margin. According to the theme of the OS.
Button (check/radio) Adjusted to text + icon. Adjusted to the icon.
Button (flat) Adjusted to the icon + margin. Adjusted to the icon + margin.
PopUp Adjusted to the longest text. According to the theme of the OS.
Edit 100 Units (px). Adjusted to text + margin.
Combo 100 Units (px). According to the theme of the OS.
ListBox 128 px or listbox_size. 128 px or listbox_size.
UpDown According to the theme of the OS. According to the theme of the OS.
Slider (horizontal) 100 Units (px). According to the theme of the OS.
Slider (vertical) According to the theme of the OS. 100 Units (px).
Progress 100 Units (px). According to the theme of the OS.
View 128 px or view_size. 128 px or view_size.
TextView 256 px or textview_size. 144 px or textview_size.
WebView 256 px or webview_size. 144 px or webview_size.
ImageView 64 px or imageview_size. 64 px or imageview_size.
TableView 256 px or tableview_size. 128 px or tableview_size.
SplitView 128 px or splitview_size. 128 px or splitview_size.
Panel Natural size. Natural size.
Panel (with scroll) 256 px or panel_size. 256 px or panel_size.

The margins and constants applied to the controls are those necessary to comply with the human guidelines of each window manager. This means that a PushButton with the text "Hello" will not have the same dimensions in WindowsXP as in macOS Mavericks or Ubuntu 16.

Empty cells will be 0-sized and will not affect the composition.

2. Margins and format

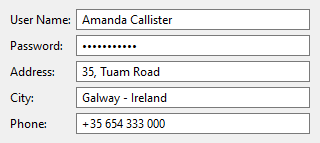

The natural sizing we have just seen adjusts the panel to the minimum size necessary to correctly house all the controls, but it is not always aesthetic. We can shape it by adding margins or forcing a given size for rows and columns (Listing 2) (Figure 3).


3. Alignment

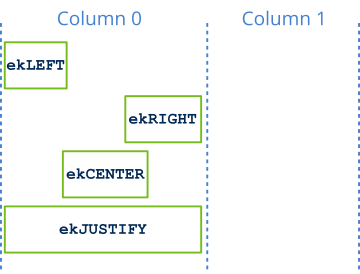

It is usual for the width of a control to be less than the width of the column that contains it, either because a fixed width has been forced or because there are wider elements in the same column. In these cases, we can indicate the horizontal or vertical alignment of the control with respect to the cell (Figure 4). In (Table 2) you have the default alignments.


4. Sub-layouts

Consider now the panel of (Figure 5). It is not difficult to realize that this arrangement does not fit in any way in a rectangular grid, so it is time to use sublayouts. In addition to individual controls, a cell also supports another layout, so we can divide the original panel into as many parts as necessary until the desired layout is achieved. The main layout will size each sublayout recursively and integrate it into the final composition. In Hello Sublayout! you have the code that generates this example.

  • Use layout_layout to assign a complete layout to a cell in another layout.
  • Window with different controls organized in blocks.

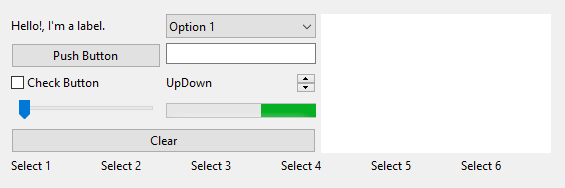

    Figure 5: Complex panel composition.

In this case we have applied the philosophy of divide and conquer, to ensure that each part fits into an individual grid (Figure 6). Each sublayout has been coded in an independent function to give greater consistency to the code, applying margins and format individually within each of them (Listing 3).

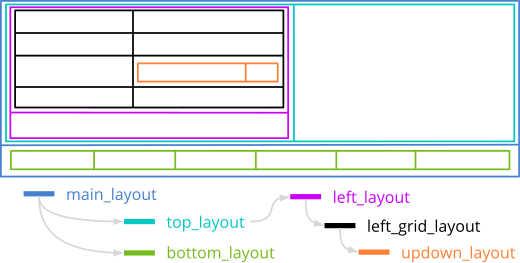

Scheme showing the limits of each sub-layout.
Figure 6: Sublayouts needed to compose the (Figure 5) panel.
Listing 3: Sublayout integration (partial).
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
static Layout *i_main_layout(void)
{
    Layout *layout1 = layout_create(1, 2);
    Layout *layout2 = i_top_layout();
    Layout *layout3 = i_bottom_layout();
    layout_layout(layout1, layout2, 0, 0);
    layout_layout(layout1, layout3, 0, 1);
    layout_margin(layout1, 5);
    layout_vmargin(layout1, 0, 5);
    return layout1;
}

5. Cell expansion

On certain occasions, the size of a layout is forced by external conditions. This happens when we have a sublayout in a cell with ekJUSTIFY alignment (internal expansion) or when the user changes the size of a resizable window (external expansion). This will produce an "pixel excess" between the natural sizing and the actual cell size (Figure 7). This situation is resolved by distributing the pixel surplus equally among all the sublayout columns, which in turn, will be recursively expanding until they reach an empty cell or an individual control. We can change this equitable distribution through these functions:

  • Use layout_hexpand to expand a single cell and leave the rest with its default size.
  • Use layout_hexpand2 to expand two cells indicating the growth rate of each.
  • Use layout_hexpand3 to expand three cells.
  • Behavior of a sublayout when its size expands to fit a cell.

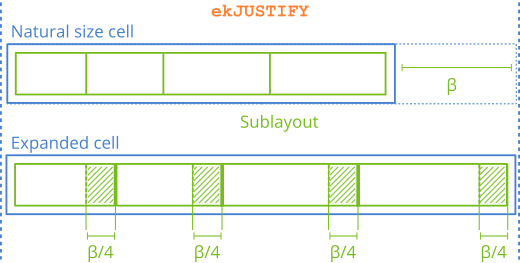

    Figure 7: When the size of the sublayout is given by external conditions, the excess of pixels is equally distributed between the columns (horizontal expansion) and rows (vertical expansion).
The vertical expansion works exactly the same, distributing the excess space between the rows of the layout.

6. Dynamic interfaces

In most cases, especially in simple applications, the user interface will remain unchanged throughout the execution, regardless of possible re-sizing. That is, a layout is generated, the necessary controls are placed in it and linked to the main window through a panel. In more complex applications, part of the interface may need to change at run time, ensuring that these changes maintain the consistency of the initial design in terms of sizes, margins, and placement of elements. NAppGUI provides three mechanisms for implementing changes at runtime.

It is important to remember that, after each change, we must update the window so that the composer recomputes and updates the view. This is done using the functions: layout_update, panel_update or window_update. The three calls are equivalent.

6.1. Replacing panels

This functionality allows us to replace an existing, and possibly visible, panel with another generated at runtime. The change will be associated with a re-composition of the window that will be carried out automatically and transparently for the programmer. This is precisely what the Hello GUI! application does as we select elements from the side ListBox (Listing 4) (Figure 8).

Listing 4: Creating and changing a panel at runtime.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
static void i_set_panel(App *app, const uint32_t index)
{
    Panel *panel = NULL;
    switch (index) {
    /* ... */
    case 5:
        panel = listboxes();
        break;
    case 6:
        panel = form_basic();
        break;
    /* ... */
    }

    layout_panel_replace(app->layout, panel, 1, 0);
}

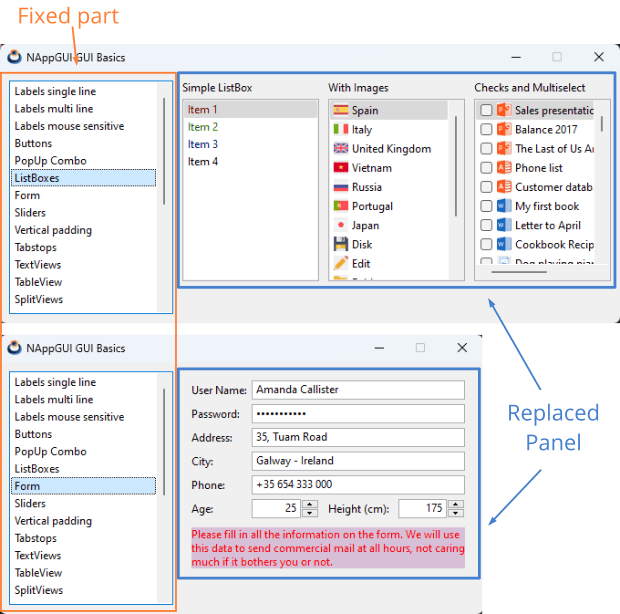

Representation of a window where one of its descending panels has been replaced.
Figure 8: Effect of replacing a panel.
It is only possible to replace one panel with another. It is not possible to do this with other types of controls.
The existing panel and its internal elements will be completely destroyed, making it impossible to recover them again.

6.2. Dynamic layouts

By dynamic layout we understand the possibility of adding or deleting rows and columns to an existing layout linked to a panel. As with panel replace, modifying a layout involves re-computing the interface and updating the window content. In Hello Dynamic Layout! you have an example of use. Inserting a row or column will create a series of empty cells of zero size, which will have no visual impact on the window (nothing will apparently change). It will be when adding controls or sublayouts to said cells that the change is perceived in the window. On the other hand, deleting a row or column will imply the destruction of all the content of the cells, both controls and sublayouts, making it impossible to recover them again.

Representation of a window where rows and columns are being added and removed with interface controls.

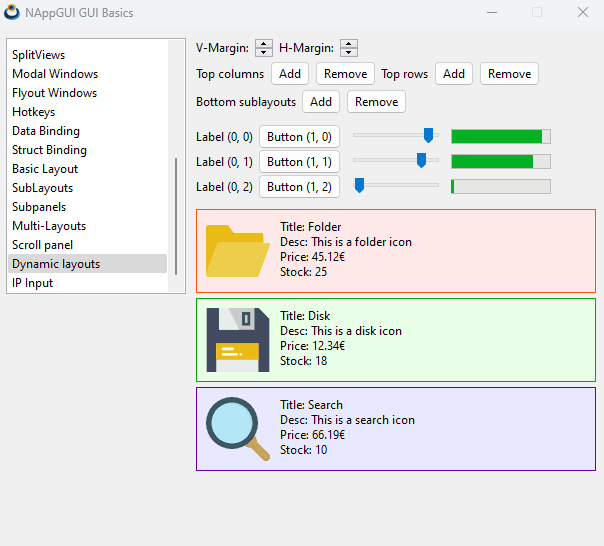

Figure 9: Add/delete rows/columns in a layout. Animation at https://nappgui.com/img/gui/dynamic_layout.gif.
It is not possible to delete all rows or all columns. At least 1x1 cells are required.
When deleting a row or column, all the elements in the cells will be destroyed and cannot be recovered.

7. Tabstops

Normally we will use the [TAB] key and the [SHIFT]+[TAB] combination to navigate through the different controls of a window or form. Terms like taborder or tabstop refer to both the navigation order and the membership (or not) of an element in said list. While it is possible to arrange the elements of a tab-list randomly, layouts provide a coherent natural order based on the placement of controls. By default, each layout creates a tab-list going through all its cells by rows (Figure 10), but we can change it:

  • Use layout_taborder to arrange the tab-list by rows or columns.
  • Use layout_tabstop to add or remove controls from the tab-list.

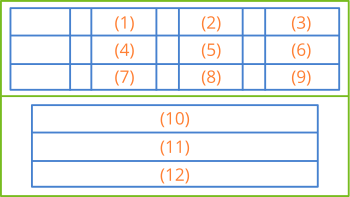

  • Animation showing [TAB] key navigation tabstops. Organization of tablist controls.
    Figure 10: Taborder by rows in layouts and sublayouts. Animation in https://nappgui.com/img/gui/tabstops.gif.

Not every cell in a layout has to be a tabstop, since it doesn't make sense for static controls like Label to receive keyboard focus. In (Table 3) you have which controls are included by default in that list. With layout_tabstop you can add or remove controls from the tab-list.

Table 3: Controls included in the tab-list.
Control Included
Label NO
Button YES
PopUp YES
Edit YES
Combo YES
ListBox YES
UpDown NO
Slider YES
Progress NO
View NO
TextView NO
WebView NO
ImageView NO
TableView YES
SplitView YES (children)
Layout (sublayout) YES
Panel YES (children)
When the taborder enters a sublayout, it will follow the local order of the latter. When exiting the sublayout it will continue with the main order.
❮ Back
Next ❯

layout_create ()

Create a new layout specifying the number of columns and rows.

Layout*
layout_create(const uint32_t ncols,
              const uint32_t nrows);
ncols

The number of columns.

nrows

The number of rows.

Return

The layout.


layout_cell ()

Get a layout cell.

Cell*
layout_cell(Layout *layout,
            const uint32_t col,
            const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The cell.


layout_control ()

Gets the control assigned to a cell in the layout.

GuiControl*
layout_control(Layout *layout,
               const uint32_t col,
               const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The control or NULL, if the cell is empty or contains a sublayout.


layout_label ()

Insert a Label control in a layout.

void
layout_label(Layout *layout,
             Label *label,
             const uint32_t col,
             const uint32_t row);
layout

The layout.

label

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_button ()

Insert a Button control in a layout.

void
layout_button(Layout *layout,
              Button *button,
              const uint32_t col,
              const uint32_t row);
layout

The layout.

button

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_popup ()

Insert a PopUp control in a layout.

void
layout_popup(Layout *layout,
             PopUp *popup,
             const uint32_t col,
             const uint32_t row);
layout

The layout.

popup

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_edit ()

Insert an Edit control in a layout.

void
layout_edit(Layout *layout,
            Edit *edit,
            const uint32_t col,
            const uint32_t row);
layout

The layout.

edit

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_combo ()

Insert a Combo control in a layout.

void
layout_combo(Layout *layout,
             Combo *combo,
             const uint32_t col,
             const uint32_t row);
layout

The layout.

combo

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_listbox ()

Insert a ListBox control in a layout.

void
layout_listbox(Layout *layout,
               ListBox *list,
               const uint32_t col,
               const uint32_t row);
layout

The layout.

list

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_updown ()

Insert an UpDown control in a layout.

void
layout_updown(Layout *layout,
              UpDown *updown,
              const uint32_t col,
              const uint32_t row);
layout

The layout.

updown

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_slider ()

Insert an Slider control in a layout.

void
layout_slider(Layout *layout,
              Slider *slider,
              const uint32_t col,
              const uint32_t row);
layout

The layout.

slider

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_progress ()

Insert a Progress control in a layout.

void
layout_progress(Layout *layout,
                Progress *progress,
                const uint32_t col,
                const uint32_t row);
layout

The layout.

progress

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_view ()

Insert View in a layout.

void
layout_view(Layout *layout,
            View *view,
            const uint32_t col,
            const uint32_t row);
layout

The layout.

view

The view to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_textview ()

Insert a TextView control in a layout.

void
layout_textview(Layout *layout,
                TextView *view,
                const uint32_t col,
                const uint32_t row);
layout

The layout.

view

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_webview ()

Insert a WebView control in a layout.

void
layout_webview(Layout *layout,
               WebView *view,
               const uint32_t col,
               const uint32_t row);
layout

The layout.

view

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_imageview ()

Insert an ImageView control in a layout.

void
layout_imageview(Layout *layout,
                 ImageView *view,
                 const uint32_t col,
                 const uint32_t row);
layout

The layout.

view

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_tableview ()

Insert an TableView control in a layout.

void
layout_tableview(Layout *layout,
                 TableView *view,
                 const uint32_t col,
                 const uint32_t row);
layout

The layout.

view

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_splitview ()

Insert an SplitView control in a layout.

void
layout_splitview(Layout *layout,
                 SplitView *view,
                 const uint32_t col,
                 const uint32_t row);
layout

The layout.

view

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_panel ()

Insert a Panel control in a layout.

void
layout_panel(Layout *layout,
             Panel *panel,
             const uint32_t col,
             const uint32_t row);
layout

The layout.

panel

The control to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_panel_replace ()

Replaces one Panel in a layout with another.

void
layout_panel_replace(Layout *layout,
                     Panel *panel,
                     const uint32_t col,
                     const uint32_t row);
layout

The layout.

panel

The new panel.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Remarks

In cell (col,row) there must previously exist a panel that will be destroyed, without the possibility of recovering it. See Replacing panels.


layout_layout ()

Insert a layout into a cell in another layout.

void
layout_layout(Layout *layout,
              Layout *sublayout,
              const uint32_t col,
              const uint32_t row);
layout

The main layout.

sublayout

The layout to insert.

col

Column, cell x coordinate.

row

Row, cell y coordinate.


layout_get_label ()

Gets the Label of a cell.

Label*
layout_get_label(const Layout *layout,
                 const uint32_t col,
                 const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The label or NULL, if the cell is empty or contains something else.


layout_get_button ()

Gets the Button of a cell.

Button*
layout_get_button(const Layout *layout,
                  const uint32_t col,
                  const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The button or NULL, if the cell is empty or contains something else.


layout_get_popup ()

Gets the PopUp of a cell.

PopUp*
layout_get_popup(const Layout *layout,
                 const uint32_t col,
                 const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The popup or NULL, if the cell is empty or contains something else.


layout_get_edit ()

Gets the Edit of a cell.

Edit*
layout_get_edit(const Layout *layout,
                const uint32_t col,
                const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The edit or NULL, if the cell is empty or contains something else.


layout_get_combo ()

Gets the Combo of a cell.

Combo*
layout_get_combo(const Layout *layout,
                 const uint32_t col,
                 const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The combo or NULL, if the cell is empty or contains something else.


layout_get_listbox ()

Gets the ListBox of a cell.

ListBox*
layout_get_listbox(const Layout *layout,
                   const uint32_t col,
                   const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The listbox or NULL, if the cell is empty or contains something else.


layout_get_updown ()

Gets the UpDown of a cell.

UpDown*
layout_get_updown(const Layout *layout,
                  const uint32_t col,
                  const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The updown or NULL, if the cell is empty or contains something else.


layout_get_slider ()

Gets the Slider of a cell.

Slider*
layout_get_slider(const Layout *layout,
                  const uint32_t col,
                  const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The slider or NULL, if the cell is empty or contains something else.


layout_get_progress ()

Gets the Progress of a cell.

Progress*
layout_get_progress(const Layout *layout,
                    const uint32_t col,
                    const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The progress or NULL, if the cell is empty or contains something else.


layout_get_view ()

Gets the View of a cell.

View*
layout_get_view(const Layout *layout,
                const uint32_t col,
                const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The view or NULL, if the cell is empty or contains something else.


layout_get_textview ()

Gets the TextView of a cell.

TextView*
layout_get_textview(const Layout *layout,
                    const uint32_t col,
                    const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The textview or NULL, if the cell is empty or contains something else.


layout_get_webview ()

Gets the WebView of a cell.

WebView*
layout_get_webview(const Layout *layout,
                   const uint32_t col,
                   const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The webview or NULL, if the cell is empty or contains something else.


layout_get_imageview ()

Gets the ImageView of a cell.

ImageView*
layout_get_imageview(const Layout *layout,
                     const uint32_t col,
                     const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The imageview or NULL, if the cell is empty or contains something else.


layout_get_tableview ()

Gets the TableView of a cell.

TableView*
layout_get_tableview(const Layout *layout,
                     const uint32_t col,
                     const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The tableview or NULL, if the cell is empty or contains something else.


layout_get_splitview ()

Gets the SplitView of a cell.

SplitView*
layout_get_splitview(const Layout *layout,
                     const uint32_t col,
                     const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The splitview or NULL, if the cell is empty or contains something else.


layout_get_panel ()

Gets the Panel of a cell.

Panel*
layout_get_panel(const Layout *layout,
                 const uint32_t col,
                 const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The panel or NULL, if the cell is empty or contains something else.


layout_get_layout ()

Gets the Layout of a cell.

Layout*
layout_get_layout(const Layout *layout,
                  const uint32_t col,
                  const uint32_t row);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

Return

The sublayot or NULL, if the cell is empty or contains something else.


layout_ncols ()

Gets the number of columns in the layout.

uint32_t
layout_ncols(const Layout *layout);
layout

The layout.

Return

Number of columns.

Remarks

See Dynamic layouts.


layout_nrows ()

Gets the number of rows in the layout.

uint32_t
layout_nrows(const Layout *layout);
layout

The layout.

Return

Number of rows.

Remarks

See Dynamic layouts.


layout_insert_col ()

Insert a new column into the layout.

void
layout_insert_col(Layout *layout,
                  const uint32_t col);
layout

The layout.

col

Position of the new column (0,ncols).

Remarks

Empty cells are inserted that will not affect the layout of the window. See Dynamic layouts.


layout_insert_row ()

Insert a new row into the layout.

void
layout_insert_row(Layout *layout,
                  const uint32_t row);
layout

The layout.

row

Position of the new row (0,nrows).

Remarks

Empty cells are inserted that will not affect the layout of the window. See Dynamic layouts.


layout_remove_col ()

Deletes an existing column in the layout.

void
layout_remove_col(Layout *layout,
                  const uint32_t col);
layout

The layout.

col

Position of the column to delete (0,ncols-1).

Remarks

All cell content (controls/sub-layouts) is irreversibly deleted. See Dynamic layouts.


layout_remove_row ()

Deletes an existing row in the layout.

void
layout_remove_row(Layout *layout,
                  const uint32_t row);
layout

The layout.

row

Position of the row to delete (0,nrows-1).

Remarks

All cell content (controls/sub-layouts) is irreversibly deleted. See Dynamic layouts.


layout_taborder ()

Set how the keyboard focus will move when you press [TAB].

void
layout_taborder(Layout *layout,
                const gui_orient_t order);
layout

The layout.

order

Loop through rows or columns.

Remarks

See Tabstops.


layout_tabstop ()

Sets whether or not a cell in the layout will receive keyboard focus when navigating with [TAB]-[SHIFT][TAB].

void
layout_tabstop(Layout *layout,
               const uint32_t col,
               const uint32_t row,
               const bool_t tabstop);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

tabstop

Enable or disable cell tabstop.

Remarks

See Tabstops.


layout_hsize ()

Set a fixed width for a layout column.

void
layout_hsize(Layout *layout,
             const uint32_t col,
             const real32_t width);
layout

The layout.

col

Column index.

width

Width.


layout_vsize ()

Force a fixed height for the layout row.

void
layout_vsize(Layout *layout,
             const uint32_t row,
             const real32_t height);
layout

The layout.

row

Row index.

height

Height.


layout_hmargin ()

Establish an inter-column margin within the layout. It is the separation between two consecutive columns.

void
layout_hmargin(Layout *layout,
               const uint32_t col,
               const real32_t margin);
layout

The layout.

col

Index of the column. The index 0 refers to the separation between column 0 and column 1. ncols-2 is the maximum accepted value.

margin

Margin.


layout_vmargin ()

Set an inter-row margin within the layout. It is the separation between two consecutive rows.

void
layout_vmargin(Layout *layout,
               const uint32_t row,
               const real32_t margin);
layout

The layout.

row

Row index Index 0 refers to the separation between row 0 and row 1. nrows-2 is the maximum accepted value.

margin

Margin.


layout_hexpand ()

Set the column to expand horizontally.

void
layout_hexpand(Layout *layout,
               const uint32_t col);
layout

The layout.

col

Column index.

Remarks

See Cell expansion.


layout_hexpand2 ()

Set the two columns that will expand horizontally.

void
layout_hexpand2(Layout *layout,
                const uint32_t col1,
                const uint32_t col2,
                const real32_t exp);
layout

The layout.

col1

Index of column 1.

col2

Index of column 2.

exp

Expansion of col1 between 0 and 1.

Remarks

The expansion of col2 = 1 - exp. See Cell expansion.


layout_hexpand3 ()

Set the three columns that will expand horizontally.

void
layout_hexpand3(Layout *layout,
                const uint32_t col1,
                const uint32_t col2,
                const uint32_t col3,
                const real32_t exp1,
                const real32_t exp2);
layout

The layout.

col1

Index of column 1.

col2

Index of column 2.

col3

Index of column 3.

exp1

Expansion of col1 between 0 and 1.

exp2

Expansion of col2 between 0 and 1.

Remarks

exp1 + exp2 < = 1. The expansion of col3 = 1 - exp1 - exp2 . See Cell expansion.


layout_vexpand ()

Set the row that will expand vertically.

void
layout_vexpand(Layout *layout,
               const uint32_t row);
layout

The layout.

row

Row index.

Remarks

See Cell expansion.


layout_vexpand2 ()

Set the two rows that will expand vertically.

void
layout_vexpand2(Layout *layout,
                const uint32_t row1,
                const uint32_t row2,
                const real32_t exp);
layout

The layout.

row1

Index of row 1.

row2

Index of row 2.

exp

Expansion of row1 between 0 and 1.

Remarks

The expansion of row2 = 1 - exp. See Cell expansion.


layout_vexpand3 ()

Set the three rows that will expand horizontally.

void
layout_vexpand3(Layout *layout,
                const uint32_t row1,
                const uint32_t row2,
                const uint32_t row3,
                const real32_t exp1,
                const real32_t exp2);
layout

The layout.

row1

Index of row 1.

row2

Index of row 2.

row3

Index of row 3.

exp1

Expansion of row1 between 0 and 1.

exp2

Expansion of row2 between 0 and 1.

Remarks

exp1 + exp2 < = 1. The expansion of row3 = 1 - exp1 - exp2. See Cell expansion.


layout_halign ()

Sets the horizontal alignment of a cell. It will take effect when the column is wider than the cell.

void
layout_halign(Layout *layout,
              const uint32_t col,
              const uint32_t row,
              const align_t align);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

align

Horizontal alignment.


layout_valign ()

Sets the vertical alignment of a cell. It will take effect when the row is taller than the cell.

void
layout_valign(Layout *layout,
              const uint32_t col,
              const uint32_t row,
              const align_t align);
layout

The layout.

col

Column, cell x coordinate.

row

Row, cell y coordinate.

align

Vertical alignment.


layout_show_col ()

Show or hide a layout column.

void
layout_show_col(Layout *layout,
                const uint32_t col,
                const bool_t visible);
layout

The layout.

col

Column index.

visible

Visible or hidden.


layout_show_row ()

Show or hide a layout row.

void
layout_show_row(Layout *layout,
                const uint32_t row,
                const bool_t visible);
layout

The layout.

row

Row index.

visible

Visible or hidden.


layout_margin ()

Set a uniform margin for the layout border.

void
layout_margin(Layout *layout,
              const real32_t mall);
layout

The layout.

mall

Margin for all four sides (left, right, up and down).


layout_margin2 ()

Set a horizontal and vertical margin for the layout edge.

void
layout_margin2(Layout *layout,
               const real32_t mtb,
               const real32_t mlr);
layout

The layout.

mtb

Upper and lower margin.

mlr

Left and right margin.


layout_margin4 ()

Set margins for the layout border.

void
layout_margin4(Layout *layout,
               const real32_t mt,
               const real32_t mr,
               const real32_t mb,
               const real32_t ml);
layout

The layout.

mt

Top edge margin.

mr

Right edge margin.

mb

Bottom edge margin.

ml

Left edge margin.


layout_bgcolor ()

Assign a background color to the layout.

void
layout_bgcolor(Layout *layout,
               const color_t color);
layout

The layout.

color

The color. With ekCOLOR_TRANSPARENT default color is restored.


layout_skcolor ()

Assign a color to the edge of the layout.

void
layout_skcolor(Layout *layout,
               const color_t color);
layout

The layout.

color

The color. With ekCOLOR_TRANSPARENT default color is restored.


layout_update ()

Update the window associated with the layout.

void
layout_update(Layout *layout);
layout

The layout.

Remarks

It is equivalent to calling window_update.


layout_dbind ()

Associate a type struct with a layout.

void
layout_dbind(Layout *layout,
             Listener *listener,
             type);
layout

The layout.

listener

Will notify through this listener every time the object changes. Can be NULL.

type

The struct type.

Remarks

See GUI Data binding.


layout_dbind_obj ()

Associate an object with a layout to view and edit it.

void
layout_dbind_obj(Layout *layout,
                 type *obj,
                 type);
layout

The layout.

obj

The object to edit.

type

Object type.

Remarks

See GUI Data binding.


layout_dbind_update ()

Updates the interface of the object associated with the layout.

void
layout_dbind_update(Layout *layout,
                    type,
                    mtype,
                    mname);
layout

The layout.

type

The object type.

mtype

The type of the field to update.

mname

The name of the field to update.

Remarks

See GUI Data binding.

❮ Back
Next ❯
